Improved Racing Baffled Racing Oil Pan

The complete swap kit includes everything you need to swap to this oil pan: the oil pan, Improved Racing baffle, dip stick, dip stick tube, pickup tube, and windage tray.

*Some parts may be shipped direct from GM 10-15 business day lead time.

$568.99$805.95

  • *Kit

    Reset options

    Windage Tray Option

Purchase and earn 569-806 SSOnly Points worth $5.69-$8.06! *Must be logged in.
Purchase and earn 569-806 SSOnly Points worth $5.69-$8.06! *Must be logged in.

SKU: N/A Categories: , Tags: , , Brand:

[yith_wcwl_add_to_wishlist]

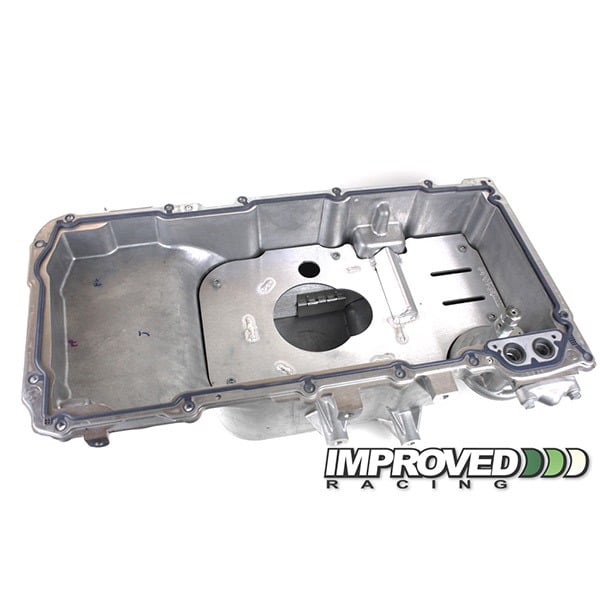

This package couples the factory oil pan for the Chevrolet Camaro SS, Chevrolet Caprice PPV, Chevrolet SS and Pontiac G8 with Improved Racing’s trap door oil pan baffle. This is a great pan for swaps, if you have the space for it, because of its high oil capacity of 8 quarts.

The complete swap kit includes everything you need to swap to this oil pan: the oil pan, Improved Racing baffle, dip stick, dip stick tube, pickup tube, and windage tray.

Features and Benefits

  • Track-proven to prevent oil starvation at up to 1.4 sustained lateral G’s in most vehicles
  • Directional trap door baffling completely encloses the oil pump pickup for maximum protection against oil starvation at high Gs
  • Baffle plate with drain-back guides and drain-back slots help accelerate return of oil to the bottom of the sump while also preventing oil slosh and reducing oil consumption
  • Reduces the risk of oil starvation when oil levels are low

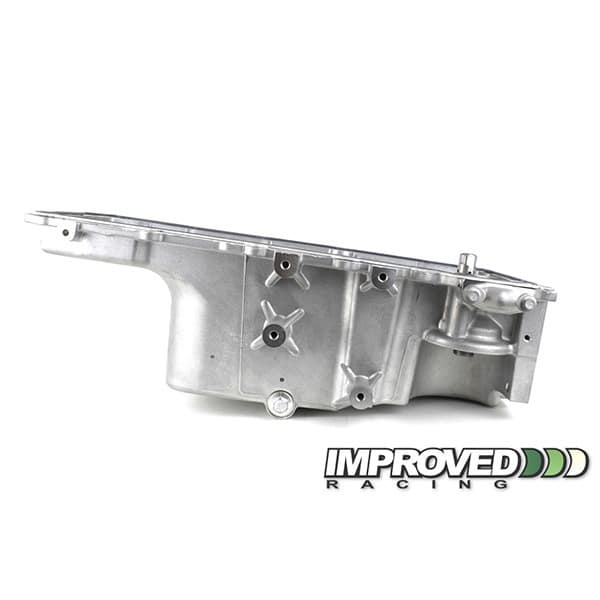

  • High-quality factory cast aluminum oil pan, which is considered a structural part of the engine block and is less prone to failure or leaking than aftermarket sheet metal pans
  • Lifetime Warranty on oil pan baffle only
  • Oil pan baffle made in the USA

Full Swap Includes

  • Improved Racing Caprice PPV / Camaro SS / G8 / SS Racing Oil Pan Baffle, part # EGM-205 (old part number EGM-1005)
  • GM Part # 12640748 – oil pan, gasket, and mounting hardware
  • Complete swap kit also includes:
    • GM Part # 12634547 – oil dip stick (indicator)
    • GM Part # 12625031 – oil dip stick tube
    • GM Part # 12611904 – oil pickup tube
    • GM Part # 12611129 – windage tray (deflector)

Applications

  • 2006-Present Holden VE/VF Commodore
  • 2008-2009 Pontiac G8 GT & GXP
  • 2008-Present Vauxhall VXR8
  • 2010-2015 Chevrolet Camaro SS (LS3 and L99)
  • 2011-Present Chevrolet Caprice PPV V8
  • 2012-2015 Chevrolet Camaro ZL1
  • 2014-Present Chevrolet SS
  • Bolts to all GM Gen III & IV LS family engines including LS1, LS6, LS2, LS3, LS7, LS9, L76, L98, L92, L93, L99, LQ4, LQ9, LSA, LSX and V8 Vortec variations
Kit

Pan & Baffle Only, Complete Swap
