Engine Oil Cooler Block-Off Cover Plate w/Sensor/Turbo Feed Ports

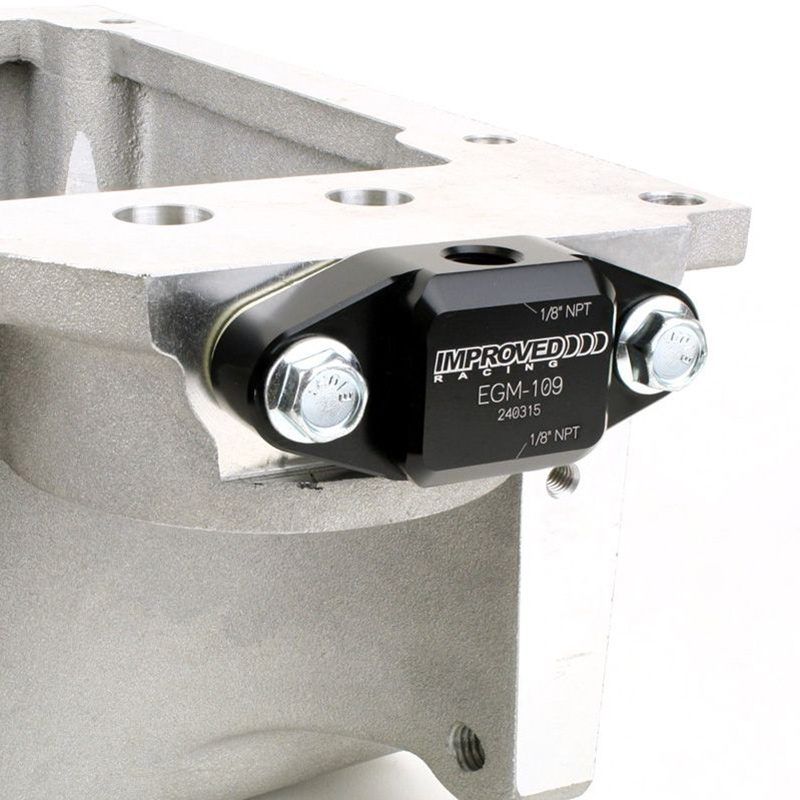

Improved Racing’s oil cooler block-off / bypass cover plate installs over the oil cooler ports found on most LS-series oil pans. This kit can be used to delete the oil cooler circuit.

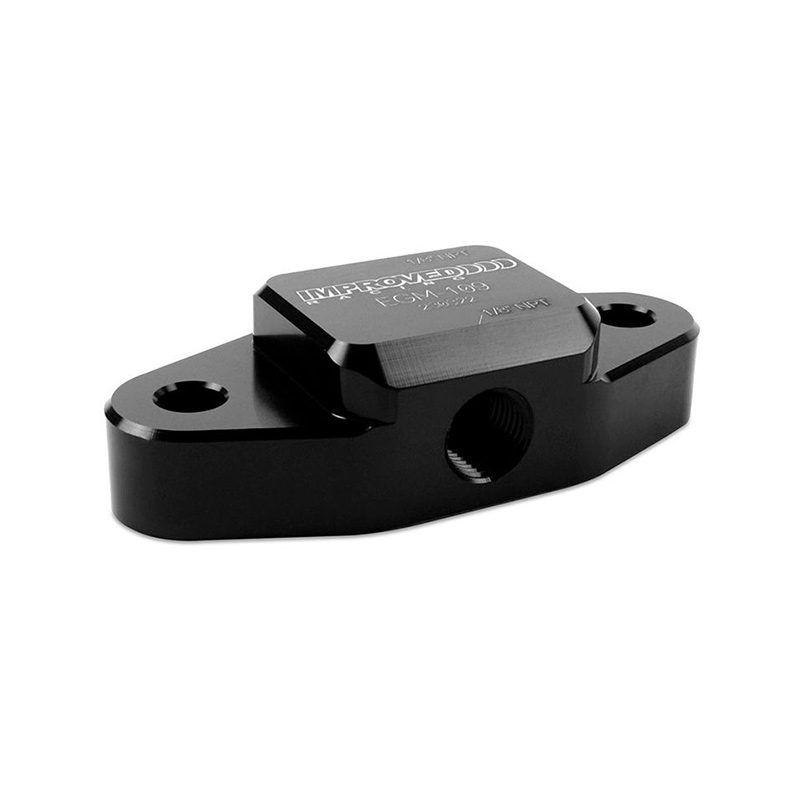

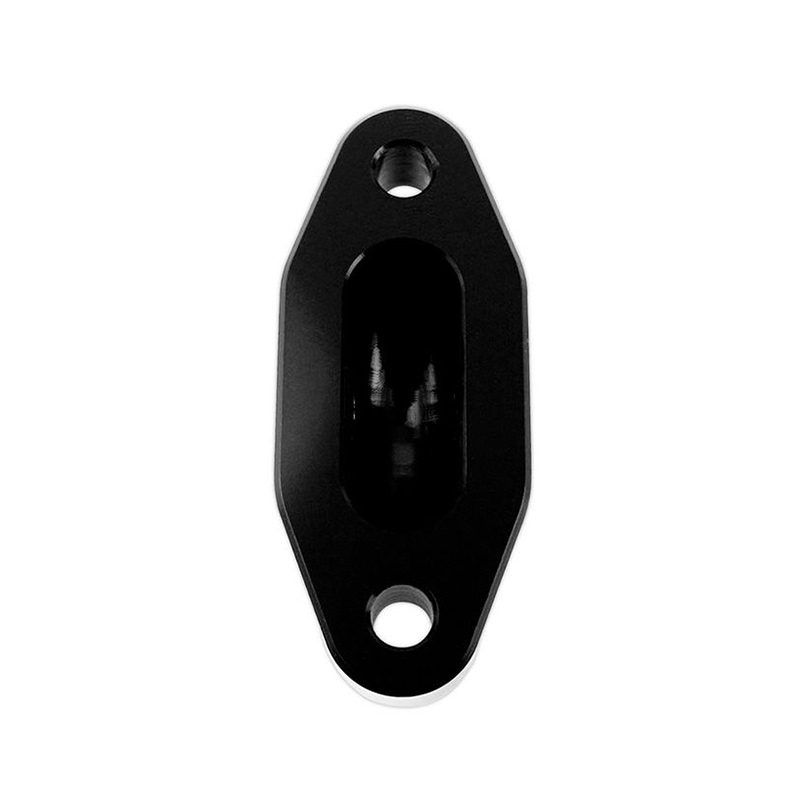

The bypass cover is CNC-machined from billet 6061-T6 aluminum and Type II anodized in black. It features a large ported internal cavity with smooth features to improve flow characteristics when compared to the factory diecast bypass cover.

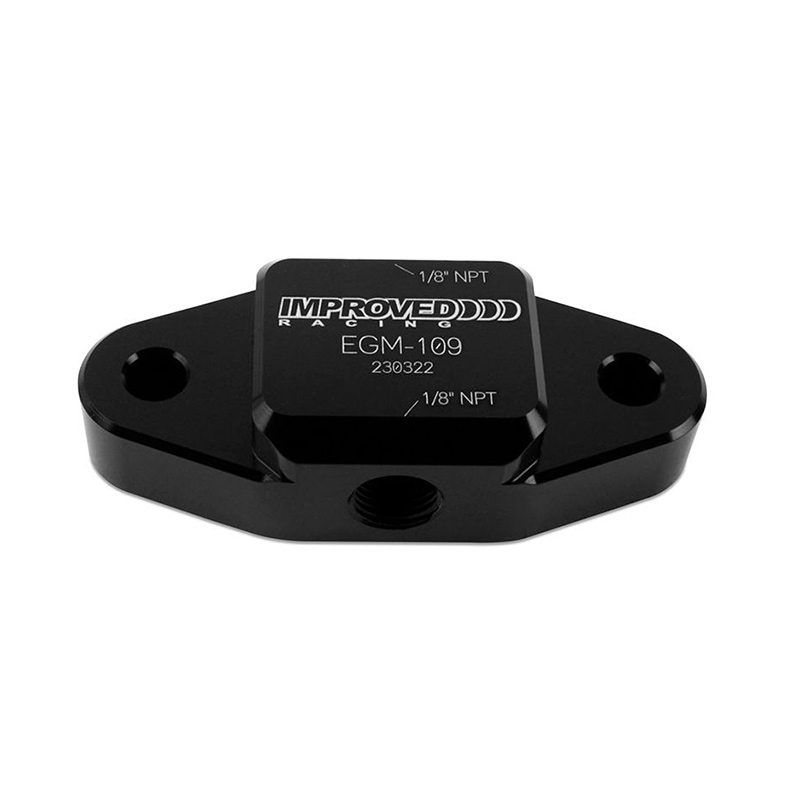

This version features 2 x 1/8″ NPT ports for oil pressure or oil temperature sensors. The ports can also be used to feed turbos. A single 1/8″ NPT plug is included in case both ports are not used. The ports are located on the top and bottom of the block-off plate.

Features & Benefits

• Bypass cover is CNC-machined from 6061-T6 billet aluminum, Type II anodized in black, and laser marked.
• Improved flow characteristics over the factory diecast bypass cover.
• Features 2 x 1/8″ NPT ports for sensors or turbo feed lines.

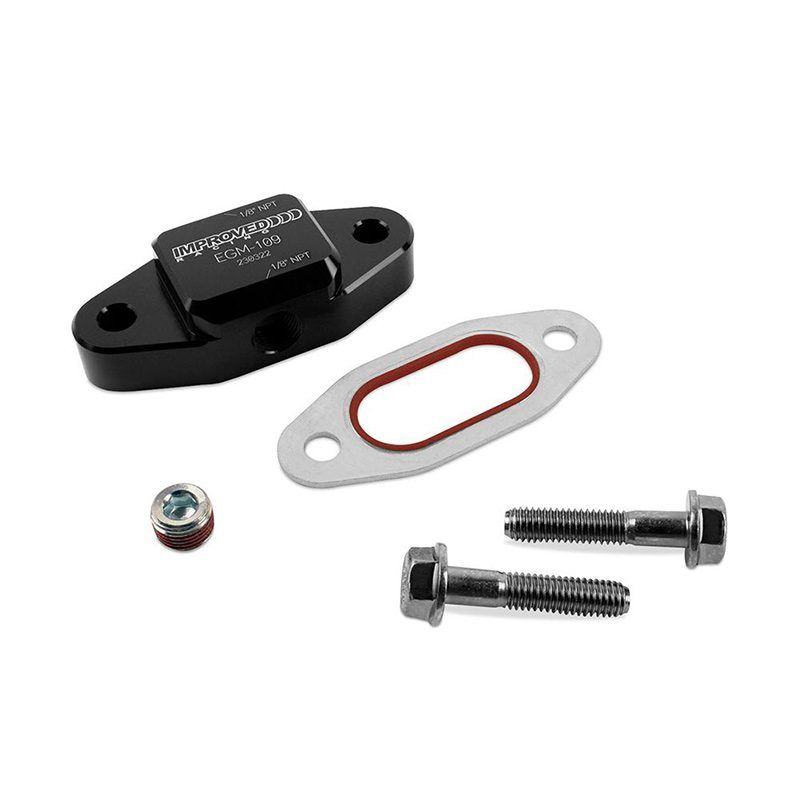

Includes

• Bypass cover
• Rubber and aluminum bonded gasket
• Mounting screws
• 1 x 1/8″ NPT port plug

Applications

• All GM LS-series engine oil pans with oil cooler line adapter plate above the oil filter.
