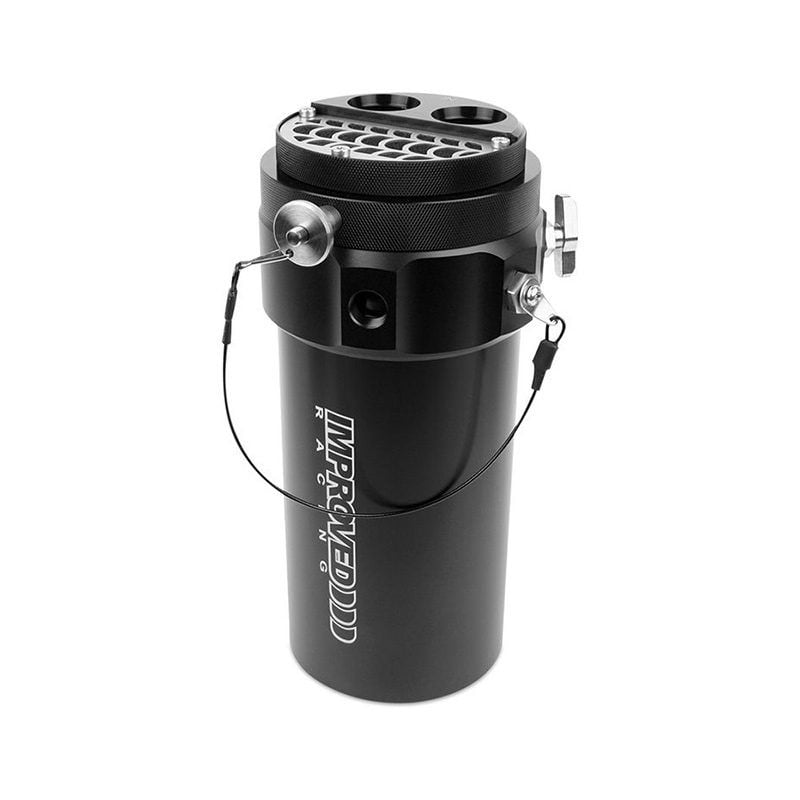

Improved CCR Competition High Flow Oil Catch Can

The Competition Oil Catch Can for Serious Racers

The CCR (Catch Can: Race) Competition oil catch can was designed with serious racers in mind. We focused on four primary design goals:

1. Maximize flow: Designed primarily as a vent-to-atmosphere catch can for racing applications, we focused on maximizing flow to ensure crank case pressures are kept at a minimum, without sacrificing air-oil separation performance.
2. Serviceability: The can was designed so it can be opened to check fluid levels removed for draining incredibly quickly without any tools. The lifetime filters can easily be removed for cleaning. And the ultra-versatile mounting bracket allows the can to be removed directly from above.

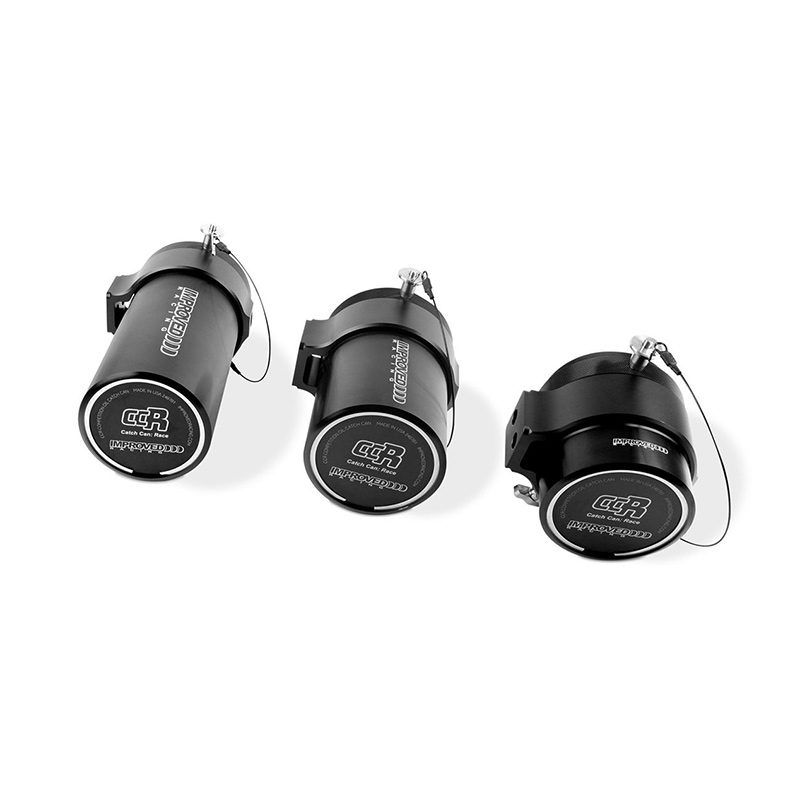

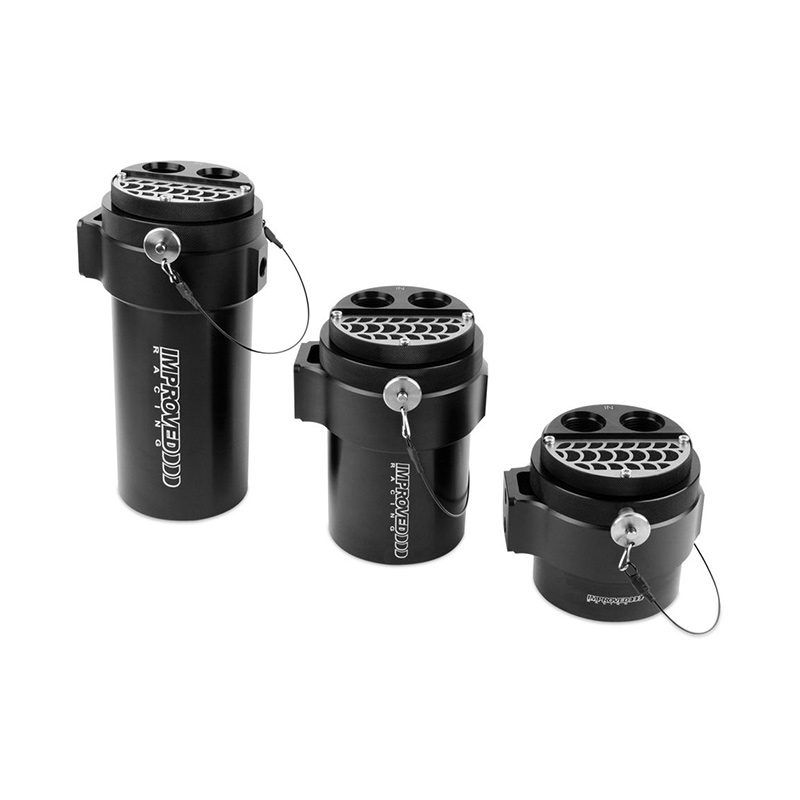

3. Capacity: In order to meet the requirements of most racing bodies, the can is offered in a 1 liter (1 quart) capacity. Two smaller sizes are also available: 0.5 liter and 0.1 liter.
4. Durability: The CCR is designed to take a beating! All components are made from durable high quality materials. As with any Improved Racing product, nothing will vibrate loose or come apart under racing conditions.

High-Flow Air-Oil Separator

High crankcase pressures can rob your engine of horsepower, which is why the CCR was specifically designed to minimize pressure drop and efficiently filter crankcase vapors.

Here’s how it works:

• Crankcase vapors enter the catch can through dual -12AN ports.

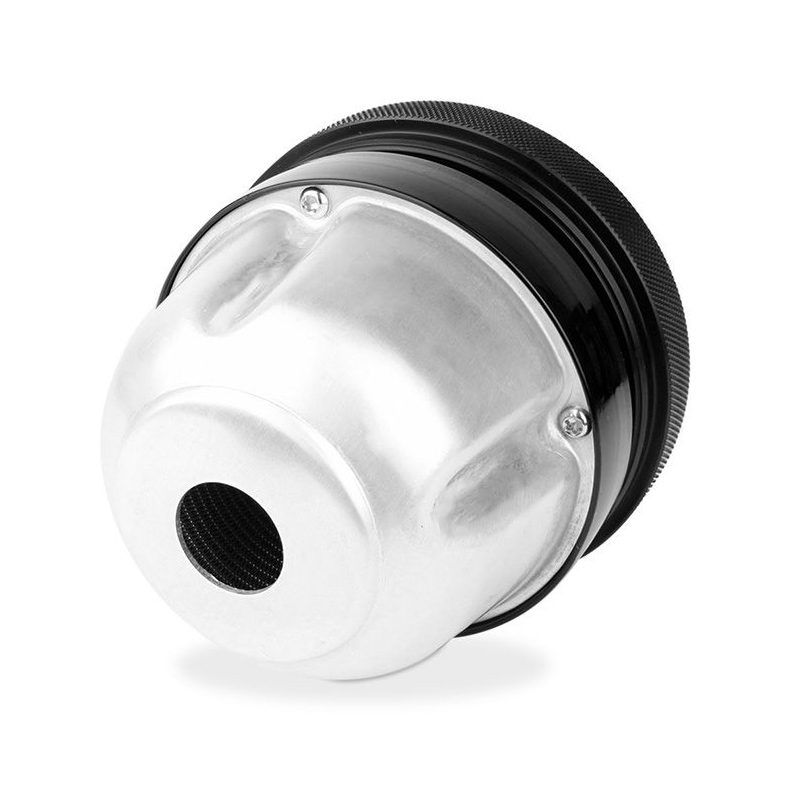

• An impact plate separates fluids from the vapor as it enters the separator.
• A large, cylindrical filter further cleans the air with an efficiency of nearly 90%.

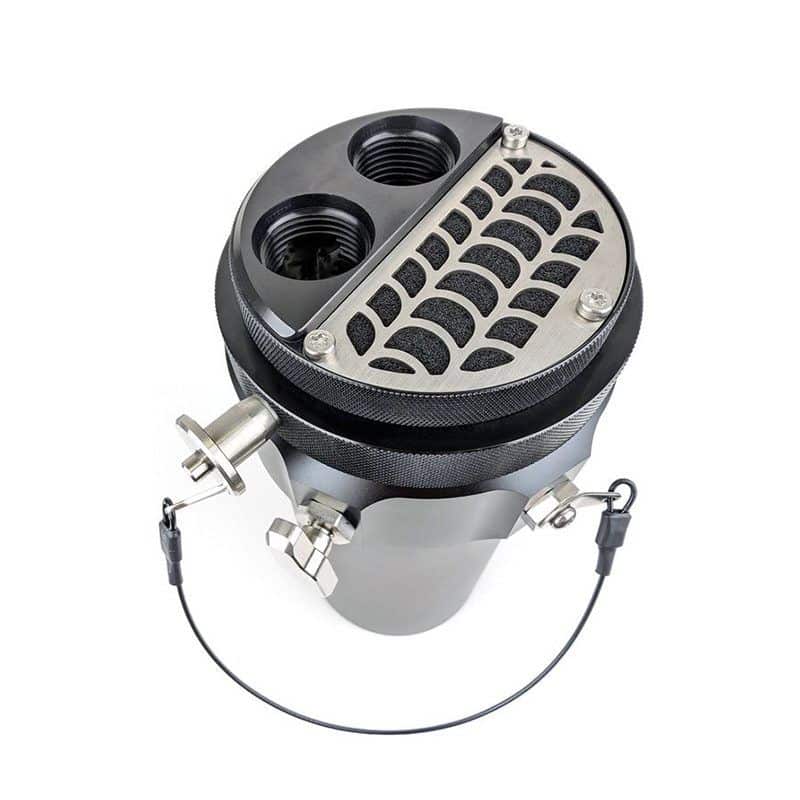

• Finally, air passes through a polyester foam filter to capture any remaining contaminants before exiting the can. In recirculated setups, the foam filter is replaced with an adapter featuring dual -12AN exit ports.

Race-Ready Durability

All of the external hardware used on the CCR is custom designed from the ground up (no off-the-shelf parts) and machined from 304 stainless steel for maximum reliability. The housing and internal components are made from aluminum to minimize weight. You can count on the CCR to hold up reliably on race day.

No Tools Required

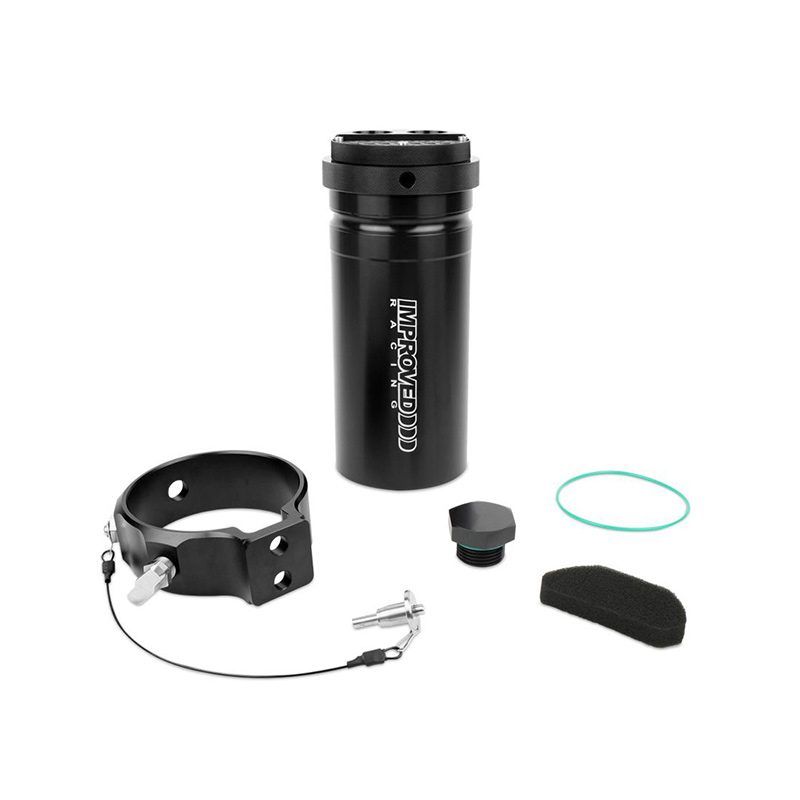

The CCR can be opened in seconds to visually check fluid levels by removing a single ball-detent lock pin. The reservoir itself can also be removed for draining simply by loosening a thumb screw, then pulling it out of the bracket from above. This design minimizes the space required to mount the can and makes servicing the can between sessions a breeze.

Quick-Release Mounting Bracket System

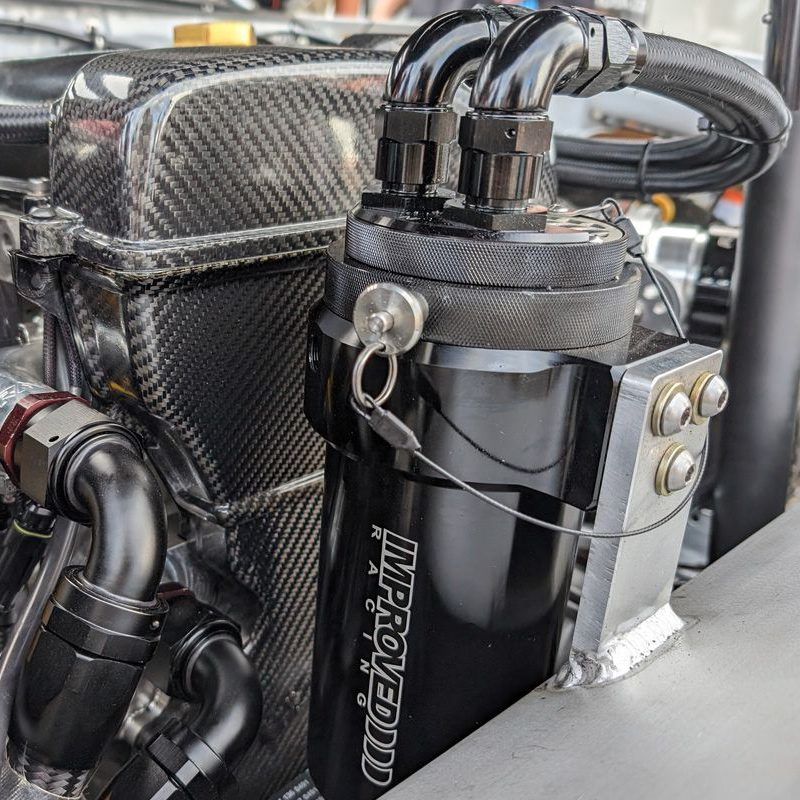

The CCR’s mounting bracket is machined from a custom, lightweight aluminum extrusion. There are three threaded holes on the bracket for the locking thumbscrew and lanyard nut. The bracket’s symmetrical design allows it to be flipped around for a total of six hardware locations, so it will fit in just about any engine bay. Two 8mm holes are provided for securing the bracket in your engine bay.

Filtration

Maximizing flow was a major design priority, so we designed a cylindrical primary filter to maximize the filter’s surface area. The filter is constructed from 5-layers of sintered stainless steel mesh in varying micron ratings. The custom molded FKM (Viton®) gaskets seals prevent any contaminants from bypassing the filter. To clean the filter, simply remove the seals and spray the filter with brake cleaner.

The secondary filter, used for vent-to-atmosphere applications, is made from a high-flow, high-temp polyester foam. These filters are washable and reusable, and we include a spare filter so you can easily swap in a fresh filter when needed.

Dimensions

Application Notes

• Forced-induction applications: If using the catch can in a recirculated setup and the can is connected to the intake manifold (on the pressure side of the turbocharger or supercharger), a check valve must be added before the catch can to avoid pressurizing the can.
• Avoid pressurizing the can beyond normal crankcase pressures (1 psi max).
• See our line of check valves for options available.

Specifications
