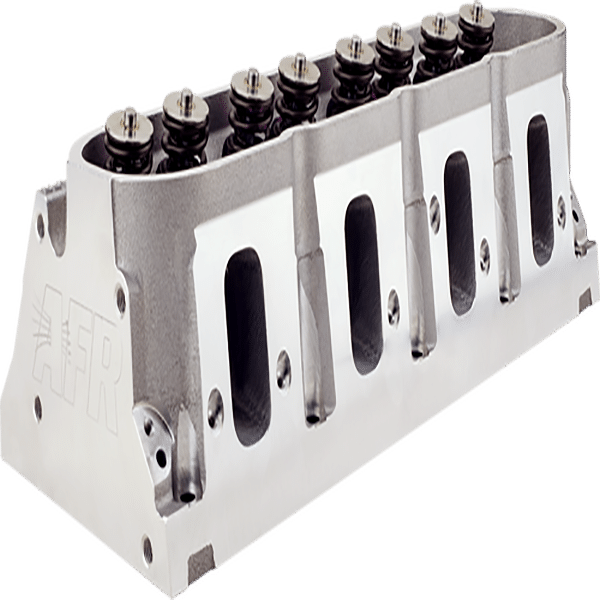

AFR 260cc LS3 Mongoose 69CC, CNC Ported Cylinder Heads (Sold as a pair)

$3,095.95

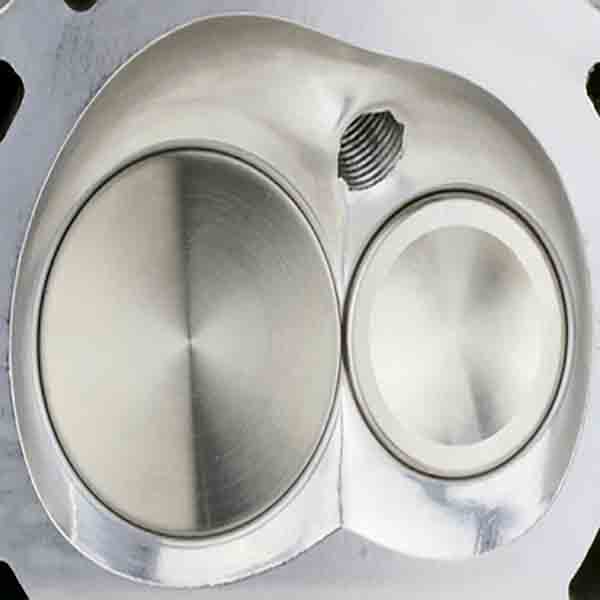

100% CNC Ported Combustion Chambers

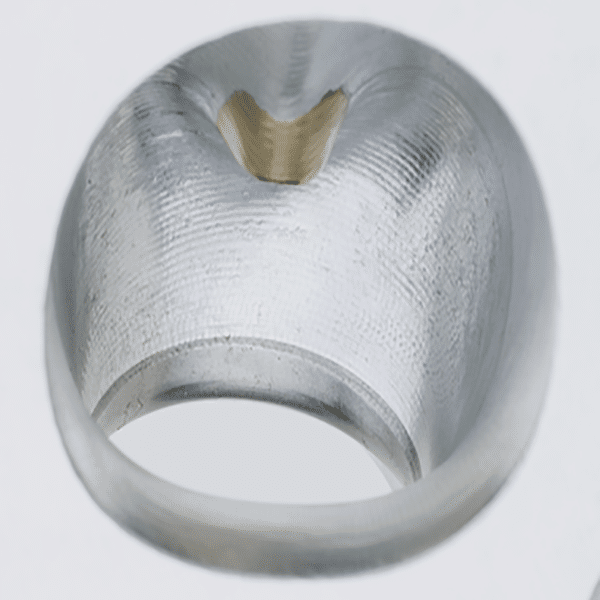

100% CNC Ported Exhaust Ports

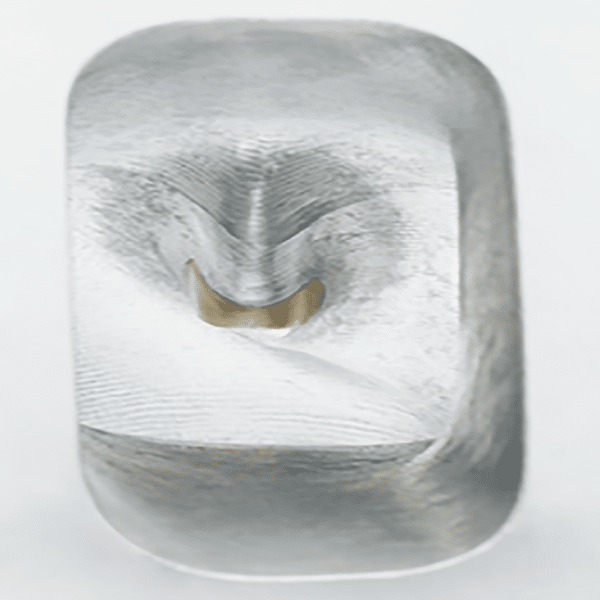

100% CNC Ported Intake Ports
Competition 5-angle Valve Job
8mm Bead Lock Intake Valve, 2.165″ x 5.200″ Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600″ x 5.205″ Overall Valve Length

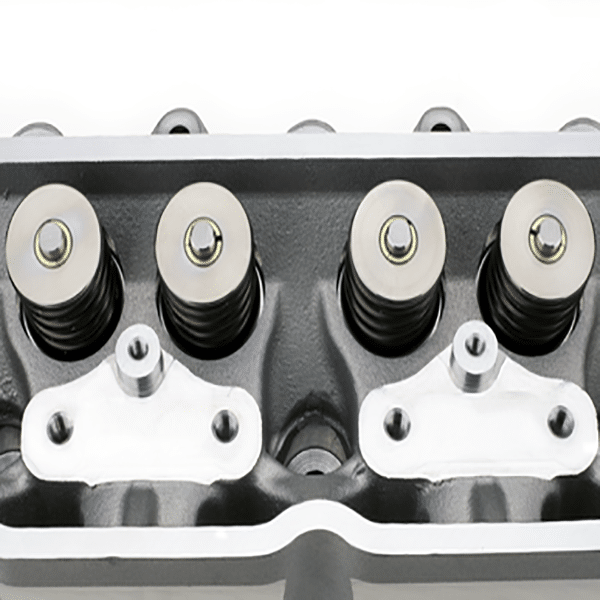

PAC Racing Spring 1.270″ OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650 maximum lift, Max RPM 7000-7200
7° Titanium Retainers 1.245″ O.D x .885″ I.D x .655″ I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600″ O.D x .495″ I.D
Hardened Valve Spring O.D Locator 1.380″ O.D x .570″ I.D
Ductile Iron Intake Valve Seats 2.200″ O.D x 1.750″ I.D x .375″ Deep
Ductile Iron Exhaust Valve Seats 1.650″ O.D x 1.350″ I.D x .375″ Deep
8 mm Bronze Valve Guides .502″ O.D x 2.550″ O.A.L
Rocker Rail Stand

Setup

Clear

*Setup

Reset options
*Leadtime Warning

I understand that these are built to order and can take up to 4-6+ weeks to be built and shipped. This order cannot be cancelled.

PEOPLE ALSO BOUGHT

AFR 260cc LS3 Mongoose 69CC, CNC Ported Cylinder Heads (Sold as a pair)

This item: AFR 260cc LS3 Mongoose 69CC, CNC Ported Cylinder Heads (Sold as a pair)

$3,095.95

Cloyes Hex Adjust Race Billet True Roller Timing Chain Set GM LS3

1 × Cloyes Hex Adjust Race Billet True Roller Timing Chain Set GM LS3

$169.99

IWIS C5R Heavy Duty Timing Chain

1 × IWIS C5R Heavy Duty Timing Chain

$148.99

🔒 Safe & Secure Checkout

SKU: N/A Categories: Cylinder Heads & Accessories, Engine Tags: afr, Air flow research, cylinder head, engine

Description
Additional information

AFR 260cc LS3 Mongoose cylinder heads are 100 percent 5-axis, CNC-ported, and feature titanium retainers, A356 aluminum castings, and Pac Racing springs. These CARB certified heads require 4.000 in. or larger bore applications on up through 454 cu. in. engines operating at or below 7,000 rpm. They flow over 380 cfm at 0.700 in. lift and are designed primarily for street and strip applications. Structural features like Air Flow Research’s trademark 3/4 in. thick head deck, reinforced rocker stud bosses, and thick wall runners provide unparalleled durability. They require the use of AFR stud girdles and full roller rocker arms. When it comes to building power, start with AFR 260cc LS3 Mongoose cylinder heads.
