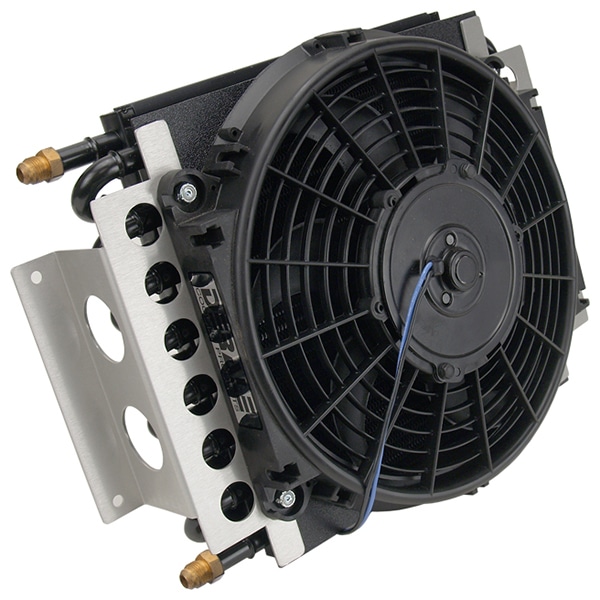

With it’s own air supply, the Electra-Cool Remote Transcooler can literally be mounted wherever space permits, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16 pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 5/16″ or 3/8″ transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. This is a durable, trouble-free way to add years to the life of your transmission, and perfect for medium to heavy-duty towing and hauling.
Specifications
- Cooler style: 16 pass Tube & Fin
- Inlet size: -6AN
- Fan size: 10″
- CFM: 650
- Amp draw: 5.3

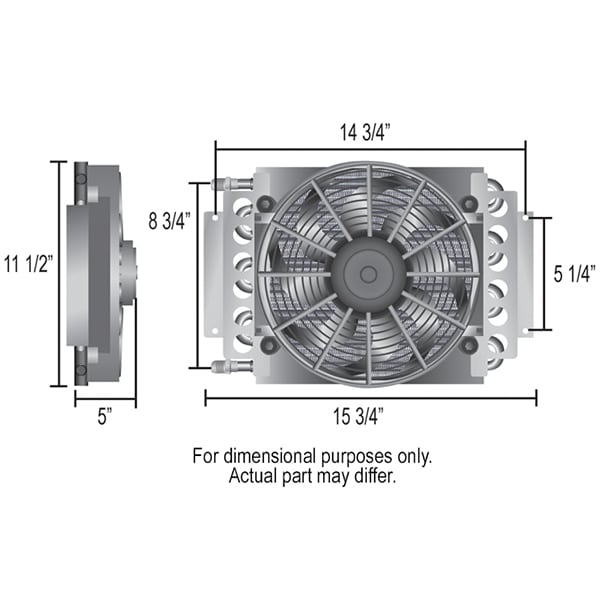

- Width: 15-3/4″
- Height: 11-1/2″
- Depth: 5″
- Inlet dim: 8-3/4″
- Mounting: 14-3/4″ x 5-1/4″
- Cooler Fluid Capacity: 19.6 oz
- Hose size: 3/8″
- Hose length: 10′
- Airflow: Puller (reversible)
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- 16 pass Tube & Fin cooler
- Clear anodized aluminum shroud
- 650 CFM reversible Tornado electric fan
- -6AN inlet size
- Derale coolers are rated at 250psi working pressure and 300psi burst strength

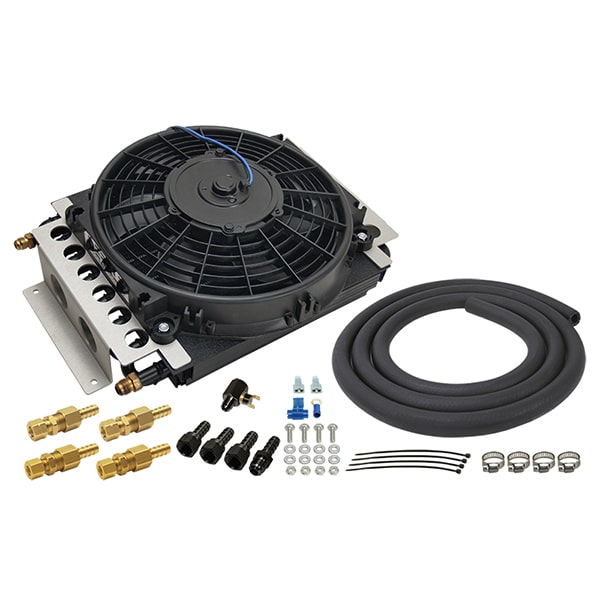

- Transmission cooler kit includes fan mounted cooler, two -6AN to 3/8″ barbed hose fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 5/16″ and 3/8″ compression fittings, and hardware.
