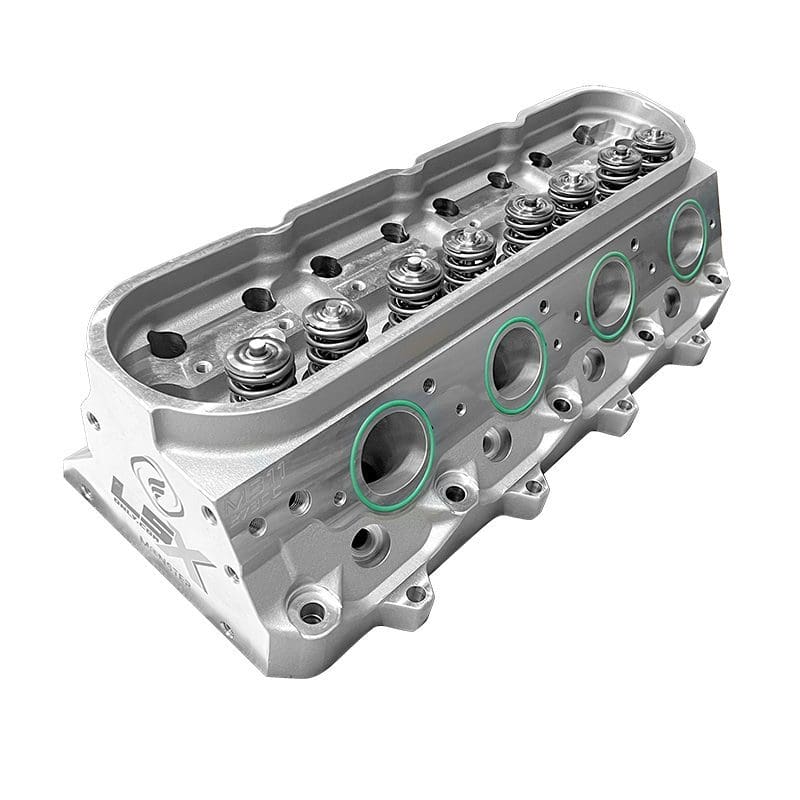

Frankenstein M311 273cc LS3/LSA Cylinder Head Set

$2,999.96

Product Details

The first step into the bedlam of Frankenstein power.

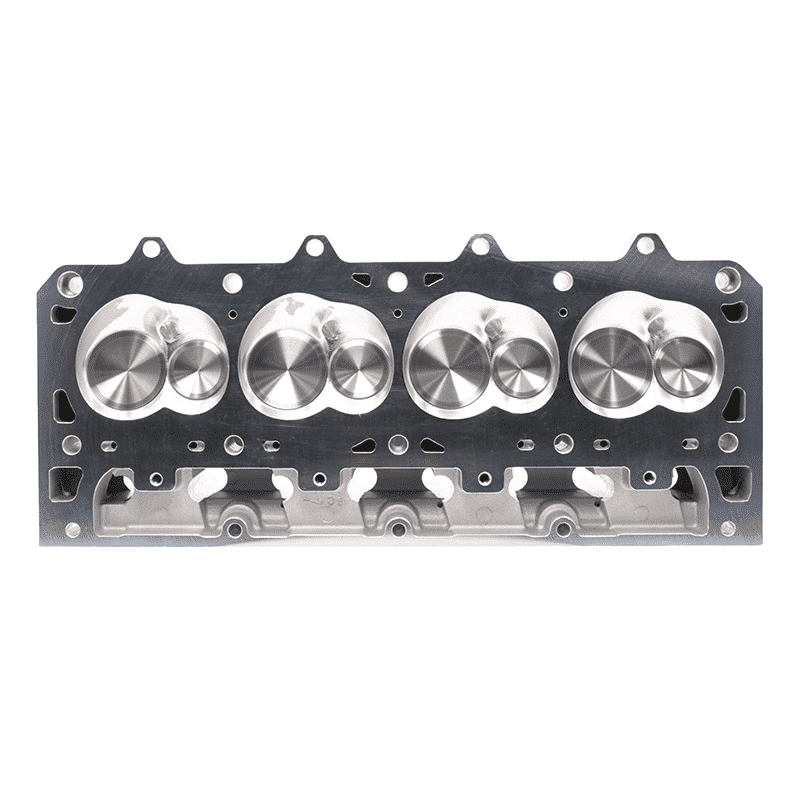

Fully CNC ported, 72cc chamber volume

273cc intake port, 112cc exhaust port and 11° valve angle

High Quality Components:

  • Black Nitride Stainless Steel Severe Duty Valves
  • Custom PAC .700” Lift Valve Springs
  • Titanium Retainers

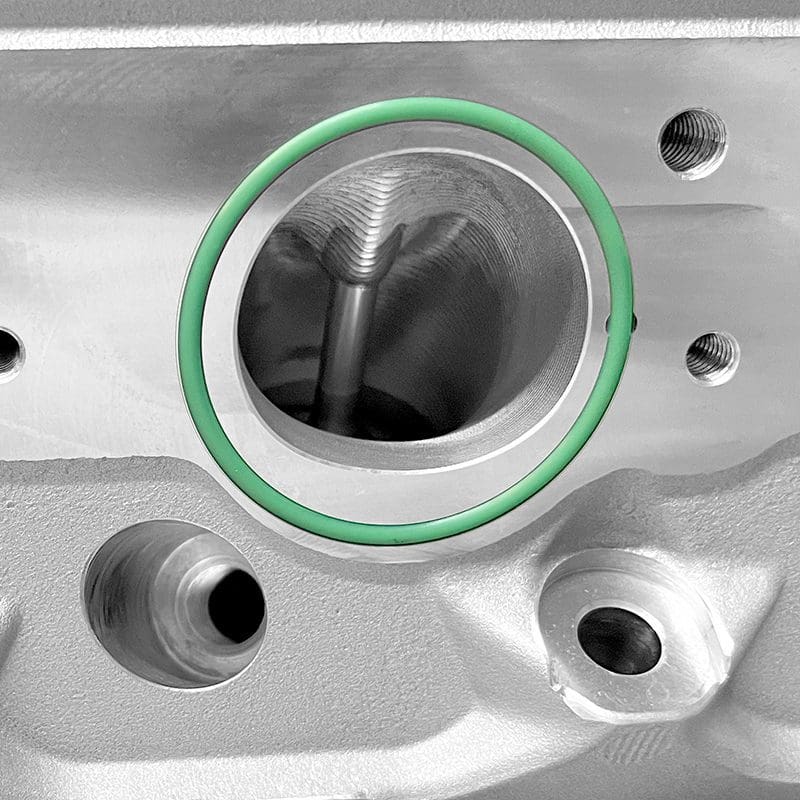

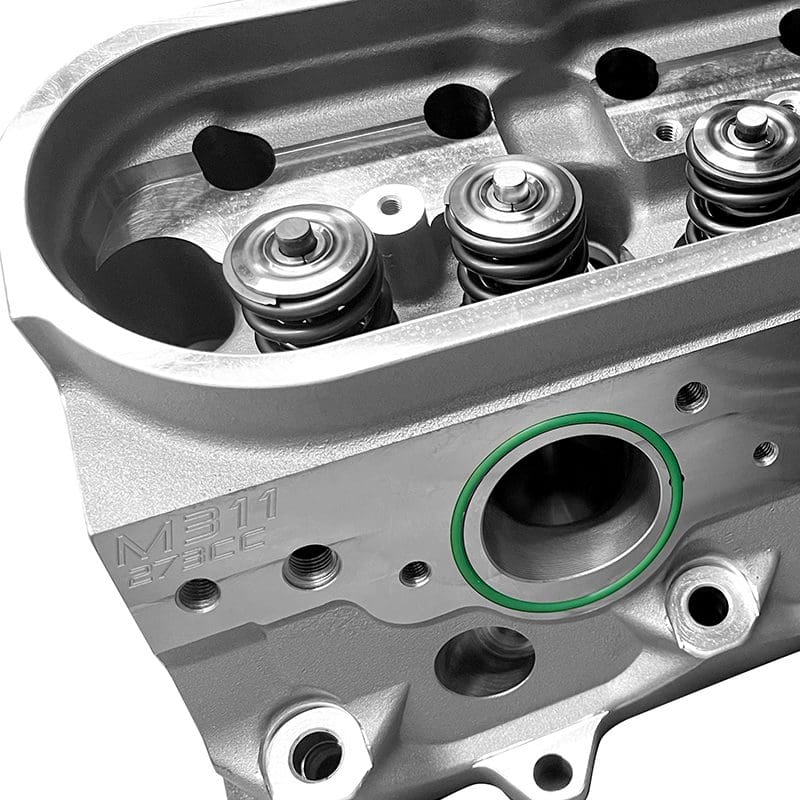

O-Ringed Exhaust Ports (Hi-Temp Silicone O-rings Included)

2″ Headers Recommended

Sold Per Set

Purchase and earn 3000 SSOnly Points worth $30.00! *Must be logged in.



More Information

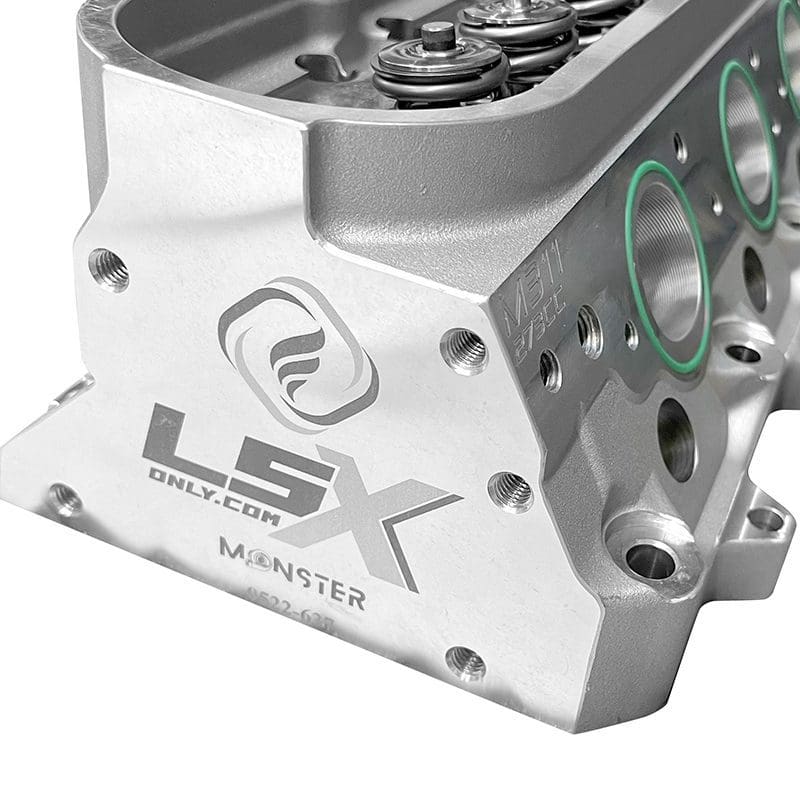

The Monster Series is the first threshold into HP creation far beyond any OEM head.

Frankenstein introduced another level of horsepower when The Monster was brought to life. FED poured our arsenal of precision engineering into a common cylinder head and woke the industry. Intake and exhaust chambers are 5-Axis CNC ported with our latest high performance program, meticulously hand blended and deburred. Our strict quality control processes ensure extreme attention to detail and precise tolerances. High quality components include FED’s premier stainless steel severe duty valves, custom PAC .700” lift valve springs, titanium retainers, bronze guides and hi-temp silicone exhaust o-ring gaskets.

Monster’s crazy cousin “Boost Monster” is now available for power adders. The Boost Monster features CHE mag-bronze valve guides and Inconel exhaust valves for the increased heat. Both the Monster and Boost Monster fit all standard equipment such as valve covers, headers, LS3 Intakes, and OEM-type LS3 rocker arms. (Billet Rocker Stands Available Separately)

Description
Specification
Part Number
Min. Bore Dia.
4.000”
Intake Port Volume
273cc
Exhaust Port Volume
112cc
Combustion Chamber Volume
72cc
Intake Valves
2.165” x 5.405” x 45°
913005
Exhaust Valves
1.600” x 5.420” x 50°
SS 913007/INC 913008
Valve Springs
.700″ Lift FED exclusive by PAC
914005
Retainers
FED Titanium-64 – LS Dual Spring
914040
Valve Locks
GM Valve Lock
916051
Valve Seals
U.S. Seal – Viton High Heat Seal
U.S. Seal 805

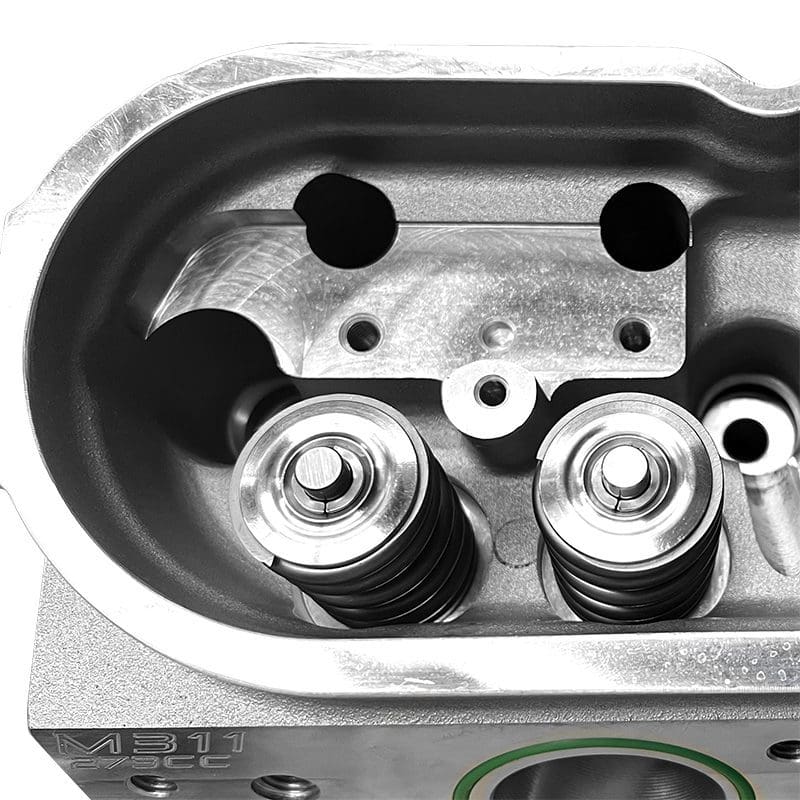

Billet Rocker Stands
913001
Exhaust Gaskets
914032
Rocker Studs:
ARP-234-7207
Head Bolts:
ARP-134-3610 (Gen IV)
ARP-134-3609 (Gen III)
Head Studs:
ARP-234-4110 (Gen IV)
ARP-234-4316 (Gen III)
Head Gaskets:
4.125” Bore
Spark Plug
Spark Plug:
Gasket Seat – .708” Reach PLEASE VERIFY
Tapered Seat – .708” Reach PLEASE VERIFY
Pushrods:
8.100 – 8.250” Length x 3/8” Diam.
Lifters:
Standard
Rockers:
Standard LS3 w/Billet Rocker Stand
w/Billet Rocker Stand – Standard
Shaft Rockers
JESEL – KPS462173

General Recommendations for Frankenstein Cylinder Heads:

o    Pushrods – Please make sure to properly check pushrod length and wall clearance. We recommend a clearance of at least .030” between the pushrod and the wall. Please do not clearance the pushrod holes any further. We have a minimum port thickness required to pass QC and that is set at our facility. Every lifter brand and style use a different pushrod length, so make sure to properly check the length needed for your application.

o    Surfacing – Flat or angle milling will affect flow numbers and may require a thicker intake gasket. The intake manifold will also need to be corrected to match the intake ports for optimal performance.

o    Boosted/Nitrous Applications – With any power adder applications comes increased stress and longevity issues for the valvetrain. We highly suggest the use of Inconel exhaust valves in any power adder combos. We also suggest our upgraded valve spring kits to help properly control the valve train in these stressful conditions.

o    All MARINE Applications – We strongly recommend Inconel exhaust valves & also offer a hard-anodized coating to slow the effects of corrosion. Please see note on guide clearance below.

o    Valve Guide Clearance – Your FED Heads come with proper guide clearance for most applications. Boosted/Nitrous or marine applications might require additional clearance and it is the customer’s responsibility to verify proper clearance in these applications.

o    Valve Springs – Forced induction, nitrous oxide and cams with aggressive ramp rates may require additional spring pressure. We offer upgraded valve springs for these types of applications. FED also recommends the use of billet 8620 cam cores and high-quality lifters. VALVE SPRINGS MAY NOT BE COMPATIBLE WITH YOUR CAMSHAFT COMBINATION. PLEASE CHECK BEFORE ENGINE ASSEMBLY. IMPROPER SPRING AND CAMSHAFT COMBO CAN CAUSE SEVERE DAMAGE.

o    Piston to Valve – FED assumes no responsibility for damage if the end user builds an engine without properly verifying he has enough piston to valve clearance (depth and radial clearance both checked). We recommend a minimum depth of .080″ on the intake valve and .100″ on the exhaust with a radial clearance of .030″ minimum around the perimeter of each valve. Just checking depth is not enough, the position of the valve pocket must also be addressed. It is the customers responsibility to verify proper piston to valve clearance.

o    CNC Porting – Occasionally a 100% CNC ported head might have a very small area left “as cast”, this in no way affects performance.

o    Valve Spring Installed Heights – FED valve spring installed height spec is +/- .015” which is the smallest shim available for adjustment. This small of a difference will have no issues and should be of no concern.

o    Stock GM Rocker Arms – GM Rocker Arms are not designed/engineered to endure aggressive aftermarket cams or higher spring pressures/rates. At a minimum FED recommends using CHE Bushing Trunnion Kits.  Without the proper parts you will experience accelerated guide wear over an extended period.

o    O-Rings – O-rings will wear out over time.  Removal of components, such as headers for example, may cause O-rings to wear faster.  We highly recommend a thorough inspection of any O-rings during removal and prior to installation.  Worn or damaged O-rings should be replaced.

o    Head Stud Sizes- Make sure to get the proper head stud diameter and length for your head and block combo.

These Warranty/Policies (the “Terms”) of sale are the only terms which govern the sale of the products delivered hereunder by Frankenstein Engine Dynamics, LLC (“Products”). Frankenstein Engine Dynamics, LLC’s (“Frankenstein Engine Dynamics”, “we”, or “our”) acceptance of customer’s (“Customer”) order is made expressly conditional on Customer’s assent to the Terms set forth herein. These Terms shall prevail to the extent they are inconsistent with any purchase order, acknowledgement, acceptance or other document of Customer, and  Frankenstein Engine Dynamics does not accept, and expressly disclaims, all terms and conditions other than those expressly set forth herein. Notwithstanding anything herein to the contrary those terms and conditions contained in any written sales contract signed between the Customer and Frankenstein Engine Dynamics covering the Products shall prevail to the extent they are inconsistent with these Terms.  Acceptance of the Products by Customer shall constitute assent to these Terms and these Terms shall become a binding contract on the terms set forth herein.

WARRANTY DISCLAIMER

Frankenstein Engine Dynamics’s Products are custom and made-to-order and carry no warranty. Due to the potential use of Products offered, all Products are sold on an “as-is” basis. No warranties of any kind, express or implied, whether written or oral are made by Frankenstein Engine Dynamics, it’s agents, or employees WITH RESPECT TO THE PRODUCTS. All implied warranties, including the implied warranties of merchantability, fitness for a particular purpose, title, and warranty against infringement of intellectual property rights of a third party are expressly excluded. The Customer bears the entire risk as to quality, performance, and use of these Products.

Frankenstein Engine Dynamics also makes no warranties, expressed or implied, WITH RESPECT TO ANY third-party manufactured components CONTAINED IN, INCORPORATED INTO, used in, ATTACHED TO, OR PACKAGED TOGETHER WITH our products, AND All implied warranties, including the implied warranties of merchantability, fitness for a particular purpose, title, and warranty against infringement of intellectual property rights of a third party are expressly excluded. We source the best available components for our Products and perform quality control checks, we do not manufacture all components in house.  Examples of third-party manufactured components include but are not limited to: cylinder head/manifold castings, porosity and core shift issues, valves, valve springs, valve spring retainers, and valve locks/keepers.

Frankenstein Engine Dynamics does not guarantee horsepower numbers due to various factors and other engine components beyond our control.



RETURN POLICY

Frankenstein Engine Dynamics has a no return policy for all customized Products. For customized Products, all sales are final, and no refunds will be given for any reason.

For all other non-customized Products that are in new, unused, and satisfactory condition, as determined by Frankenstein Engine Dynamics in its sole discretion, Frankenstein Engine Dynamics will refund the Customer the original sales price subject to a restocking fee of thirty percent (30%) of the original sales price. The Customer shall be responsible for all return shipping costs.

Frankenstein Engine Dynamics wants our Customers to be completely satisfied with their purchase.  We perform quality control checks and inspect our Products before they are shipped to the Customer. If a Customer feels that there is a problem with workmanship, we will request that the Product be returned to us for inspection. Frankenstein Engine Dynamics will issue you an RMA number for the return of the Product to our facility and full inspection. If we determine that workmanship is the cause of the problem, we will do everything possible to correct it. We do not accept cylinder heads or other Products that have been installed or utilized in any way because Frankenstein Engine Dynamics has no oversight on proper use or installation.

Defective components a customer purchases outside of the point of sale from Frankenstein Engine Dynamics must address any concerns directly with the manufacturer. Defective Products purchased through Frankenstein Engine Dynamics will qualify for assistance from Frankenstein Engine Dynamics to rectify a problem.

OFF-ROAD/COMPETITION USE ONLY

Customer acknowledges and agrees that our Products are developed and intended for off-road/competition use only in a controlled environment and may be used only on vehicles used solely for off-road/competition purposes. Products sold for off-road/competition use only are intended for racing vehicles which may never be used on public streets, roads, or highways, and may be in violation of federal or state emissions standards, Department of Transportation regulations, or local and state traffic regulations.

Customer acknowledges and agrees that use on any state or federal highway may constitute a violation of the Clean Air Act (CAA). The CAA can be found at http://www.epa.gov/air/caa/. The CAA contains, in detail, what are considered to be violations of motor vehicle emission standards and corresponding penalties for failure to obey, and should be read in full before acknowledging this disclaimer and/or installing this off-road/competition use only Product. Customer acknowledges and agrees that it is responsible for understanding and complying with all local, state, and federal laws. Customer agrees to indemnify, defend, and hold harmless Frankenstein Engine Dynamics and its subsidiaries and related companies (and its and their respective officers, directors, employees and agents) from and against any and all claims, demands, and expenses, including reasonable attorneys’ fees for the defense thereof, arising out of or in connection with any failure by the Customer to comply with any local, state and federal laws.

LIABILITY

All performance modifications and installations are at the Customer’s own risk. Frankenstein Engine Dynamics holds no responsibility either implied or otherwise for mechanical, electrical or other failure when using the Products. Frankenstein Engine Dynamics assumes no responsibility for personal injury, labor, or any other injury arising out of the use of the Products. The Customer assumes full responsibility of our Product upon delivery.

For the avoidance of doubt, under no circumstances shall Frankenstein Engine Dynamics be liable for any defect or damage due to:  (a) transportation; (b) storage; (c) improper use, installation, or adjustment; (d) failure to follow the product instructions or to perform any preventive maintenance; (e) modifications or alterations; (f) unauthorized repair; (g) normal wear and tear; or (h) external causes such as accidents, abuse, neglect, or other actions or events beyond Frankenstein Engine Dynamics’s reasonable control.

PROPOSITION 65

                CUSTOMER acknowledges that the Products can expose individuals to chemicals includinG Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

ORDER & PAYMENT POLICY

In order to provide excellent customer service, Frankenstein Engine Dynamics requires the following:

Customers that send in their cylinder heads for services (port work, valve jobs, etc.) must have a sales order number which is provided by a Frankenstein Engine Dynamics salesman. Cylinder heads that arrive with no sales order number will be refused and returned to the Customer at the Customer’s expense.

Payment is required in full on standard cylinder head and labor packages prior to work being started and/or shipment.

Custom projects require a 50% deposit based on the initial sales quotation before work can begin, and any changes made to custom projects will require written Customer approval. Payment for any remaining balance is required before shipment of the custom project Product. No exceptions.

REPAIR WORK

Frankenstein Engine Dynamics will repair Products manufactured and sold by Frankenstein Engine Dynamics only.

The minimum charge for repairs is $350.00. Upon receipt of a Customer’s repair we will inspect and provide an initial estimate for repairs. Due to the fact that all issues are not visually identified during an initial inspection, the estimate for repairs could increase. If Frankenstein Engine Dynamics anticipates a repair cost higher than originally quoted, the Customer will be informed and will require written Customer approval prior to repair completion.

Frankenstein Engine Dynamics makes no warranties, expressed or implied, WITH RESPECT TO ANY REPAIRS TO THE REPAIRED PRODUCTS, AND All implied warranties, including the implied warranties of merchantability AND fitness for a particular purpose are expressly excluded.

ORDER COMPLETION/FORCE MAJEURE

Frankenstein Engine Dynamics makes every effort to complete customer orders as quickly as possible. However, we cannot guarantee any sort of completion timeline due to factors outside of our control. Frankenstein Engine Dynamics shall not be liable or responsible to Customer, nor be deemed to have defaulted or breached these Terms, for any failure or delay in fulfilling or performing our obligations under these Terms when and to the extent such failure or delay is caused by or results from acts or circumstances beyond our reasonable control including, without limitation, acts of God, flood, fire, earthquake, explosion, governmental actions, war, invasion or hostilities (whether war is declared or not), terrorist threats or acts, riot, or other civil unrest, national emergency, revolution, insurrection, epidemic, lockouts, strikes or other labor disputes (whether or not relating to Frankenstein Engine Dynamics ‘s workforce), or restraints or delays affecting carriers or inability or delay in obtaining supplies of adequate or suitable materials, materials or telecommunication breakdown or power outage.  Customers will be kept informed of any anticipated delays.

CONFIDENTIAL INFORMATION

All non-public, confidential or proprietary information of Frankenstein Engine Dynamics, including but not limited to specifications, samples, patterns, designs, plans, drawings, documents, data, business operations, customer lists, pricing, discounts or rebates, disclosed by Frankenstein Engine Dynamics to the Customer, whether disclosed orally or disclosed or accessed in written, electronic or other form or media, and whether or not marked, designated or otherwise identified as “confidential” in connection with these Terms is confidential, solely for the use of performing the obligations under these Terms and may not be disclosed or copied unless authorized in advance by Frankenstein Engine Dynamics in writing. Without prejudice to the foregoing, under no circumstances shall Customer disclose any such information of Frankenstein Engine Dynamics to any competitor of Frankenstein Engine Dynamics. Upon Frankenstein Engine Dynamics’s request, Customer shall promptly return all documents and other materials received from Frankenstein Engine Dynamics. Frankenstein Engine Dynamics shall be entitled to injunctive relief for any violation of this provision. This provision does not apply to information that is: (a) in the public domain except as a result of a breach of these Terms; (b) known to Customer at the time of disclosure; or (c) rightfully obtained by Customer on a non-confidential basis from a third party.

LIMITATION OF LIABILITY

IN NO EVENT, SHALL FRANKENSTEIN ENGINE DYNAMICS OR ITS AFFILIATES BE LIABLE FOR CONSEQUENTIAL OR INDIRECT DAMAGES ARISING OUT OF OR IN CONNECTION WITH THESE TERMS, INCLUDING WITHOUT LIMITATION, BREACH OF ANY OBLIGATION IMPOSED ON FRANKENSTEIN ENGINE DYNAMICS HEREUNDER OR IN CONNECTION HEREWITH. CONSEQUENTIAL DAMAGES FOR PURPOSES HEREOF SHALL INCLUDE WITHOUT LIMITATION, LOSS OF USE, INCOME OR PROFIT, OR LOSSES SUSTAINED AS THE RESULT OF INJURY (INCLUDING DEATH) TO ANY PERSON OR LOSS OF OR DAMAGE TO PROPERTY. CUSTOMER SHALL INDEMNIFY, DEFEND, AND HOLD HARMLESS FRANKENSTEIN ENGINE DYNAMICS, ITS AFFILIATES, PARENTS AND SUBSIDIARY COMPANIES, AND THEIR OWNERS, OFFICERS, EMPLOYEES AND AGENTS AGAINST ALL LIABILITY, COST OR EXPENSE WHICH MAY BE SUSTAINED BY ANY OF THEM ON ACCOUNT OF LOSS, DAMAGE OR INJURY, RELATED TO THE PRODUCTS WHETHER CAUSED IN WHOLE OR IN PART BY FRANKENSTEIN ENGINE DYNAMICS. NOTWITHSTANDING ANYTHING TO THE CONTRARY, FRANKENSTEIN ENGINE DYNAMICS’S LIABILITY TO THE CUSTOMER, ITS AFFILIATES AND ITS AND THEIR RESPECTIVE OFFICERS, DIRECTORS, EMPLOYEES, SHAREHOLDERS, CUSTOMERS, CLIENTS, ADVISORS, AND AGENTS SHALL NOT EXCEED THE PRICE PAID BY CUSTOMER TO FRANKENSTEIN ENGINE DYNAMICS OR AN AFFILIATE FOR THE PRODUCTS.

GOVERNING LAW; Consent to Jurisdiction and Venue; Attorneys’ Fees

These Terms and all matters arising out of or relating to these Terms, shall be governed by and construed in accordance with the laws of the State of Texas without regard to choice of law principles, and any action, claim or suit initiated in connection with these Terms shall be prosecuted exclusively within the state or federal courts located in Tarrant County, Texas. The prevailing party in any action to enforce these Terms will be entitled to recover its attorneys’ fees and costs in connection with such action.

Frankenstein Engine Dynamics appreciates all Customers and the support they have shown us over the years! Our goal is to provide an exemplary product and outstanding customer service! If our Customers have suggestions on how we can improve our service or products we welcome the feedback.

Thank you!
