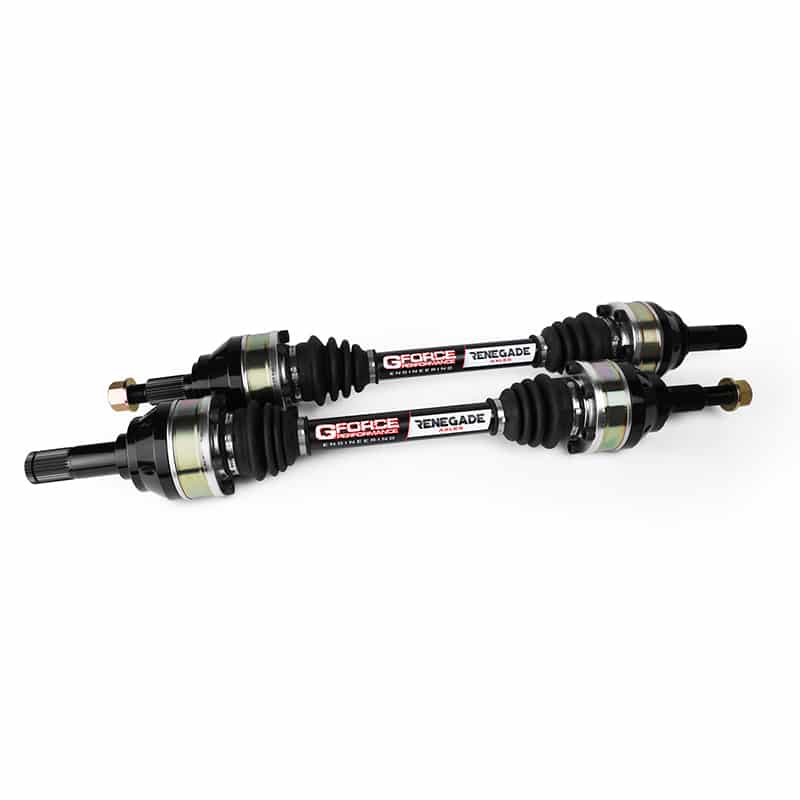

GForce Renegade Axles (Pair)
$1,799.00
- All G8/SS axles are designed to work with the factory 32 spline differential and 30 spline wheel hubs. Australian platforms need to confirm spline counts before ordering as there are some variables.
- Our average G8/SS customer is around 700hp, with some as high as 1000hp. Important to note that any axle can fail at a lower power level due to wheel hop or misuse. The listed numbers should not be an expectation, but an idea for capability.
- Many customers will see a decrease in reliability with the factory SS differential around 800hp (ZL1 differential offering a little more strength). Some have certainly failed at considerably lower power levels, but also worth noting that if you plan to run competitively or at a considerably higher power level that you might consider an upgrade such as our 9” conversion.
*Built to order, typical turnaround time is 2-3 weeks, but may be longer. This order cannot be cancelled.*
The GForce Renegade Axles are the tried and true axle design that has become the standard in performance half-shafts. The Renegade axle has waivered very little from its roots some 15 years ago. Advancements in materials, heat-treat processes and machining have only improved their efficiency and capabilities. It is hard to argue with the Renegade’s pedigree for strength and overall value.

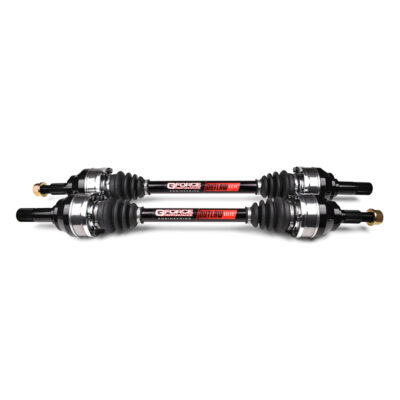

The GForce Outlaw Axles were introduced as the next iteration in the GForce line-up, boasting unparalleled performance and durability even in the most extreme driving environments. The Outlaw axles use a unique and uniform surface treatment that helps cut down on rolling resistance and wear. This is helpful in just about every application as CV’s will almost always be functioning at some angle. Additionally, the CV ball bearings are constantly traveling back and forth in the CV housing every rotation of the axle. That equates to a lot of work and, in turn a lot of heat production. Ultimately, the Outlaw CV is more efficient, which means more energy from the engine to the tires with less effort. As a byproduct, we see less heat because of the decreased rolling resistance and this translates to longer CV life.
Heat and friction will gradually break down CV grease until it no longer functions as a lubricant. The Outlaw axles also get a top-of-the-line grease, which has a higher heat flash point and superior lubrication qualities in comparison to what is used in the Renegade axles.
The CV to stub joint is a critical mating point that relies solely on clamping force to hold the stub in place relative to the CV and axle bar. The Renegade axles get a standard 12.9 socket headed cap screw, where the Outlaw axles get a 12-point ARP fastener to help with overall strength and clamping force.
The GForce Outlaw Axles were introduced as the next iteration in the GForce line-up, boasting unparalleled performance and durability even in the most extreme driving environments. The Outlaw axles use a unique and uniform surface treatment that helps cut down on rolling resistance and wear. This is helpful in just about every application as CV’s will almost always be functioning at some angle. Additionally, the CV ball bearings are constantly traveling back and forth in the CV housing every rotation of the axle. That equates to a lot of work and, in turn a lot of heat production. Ultimately, the Outlaw CV is more efficient, which means more energy from the engine to the tires with less effort. As a byproduct, we see less heat because of the decreased rolling resistance and this translates to longer CV life.
Purchase and earn 1799 SSOnly Points worth $17.99! *Must be logged in.
GForce Axles have become synonymous with record breaking consistent performance and have proven to be the go-to solution for anyone looking to get the most from their factory driveline setup. Not all vehicles have an optimal design or the most ideal spline counts to boost strength, but you can be confident that GForce axles are engineered to be the absolute strongest possible to work within the space provided by the OEM manufacturer. GForce offers two different axles for most applications.
Specific notes for Pontiac G8 & Chevy SS:
- All G8/SS axles are designed to work with the factory 32 spline differential and 30 spline wheel hubs. Australian platforms need to confirm spline counts before ordering as there are some variables.
- Our average G8/SS customer is around 700hp, with some as high as 1000hp. Important to note that any axle can fail at a lower power level due to wheel hop or misuse. The listed numbers should not be an expectation, but an idea for capability.
- Many customers will see a decrease in reliability with the factory SS differential around 800hp (ZL1 differential offering a little more strength). Some have certainly failed at considerably lower power levels, but also worth noting that if you plan to run competitively or at a considerably higher power level that you might consider an upgrade such as our 9” conversion.
Fitment
GForce axle shafts were manufactured based on OEM suspension. Aftermarket shocks, control arms, etc. may present clearance issues. If CV boots have clearance issues, low profile boots can be purchased at an upgraded cost. The low profile boots reduce the amount of available axle angle in comparison to the standard boots, so they are not ideal for lowered or high axle angle vehicles. This includes 2010-15 Camaro and all years of Mopar platforms. If you have questions or would like to add low profile boots to your axles, please contact us for more information.
Damage Prevention
NO DRIVELINE COMPONENT IS BOMBPROOF! GForce does not put a power rating on any driveline components as there are entirely too many variables that can affect a driveline component outside of power. We take great pride in trying to build the strongest driveline components to fit within certain applications, but it is important to know that You, the end customer, are responsible for seeing to proper installation and You, as the driver, are responsible for the lifespan of your axles or other driveline components.
Service
All driveline components will fatigue or wear over time depending on how the vehicle is driven and what level of performance is demanded from them. CV joints are a wear item and will see wear over time, but with our current design, axles can be sent in for service. So boots, fasteners, and CV assemblies can be serviced without scrapping the complete axle assembly. It is up to each customer to establish their own maintenance intervals based upon the manner in which their car is driven. Individual inner or outer splined stubs and axle bars can be replaced as well if they twist or are damaged due to wheel hop or simply from power levels exceeding capability of the material. Customers can reach out to GForce directly for current repair costs or component replacement as well as return authorizations for service – sales@gforce1320.com
| Configuration | Mach XF Balanced, Mach XF, Mach Shorty XF Balanced, Mach Shorty XF |
|---|
WHAT CUSTOMERS SAY
Be the first to leave a review.
You are reviewing
GForce Renegade Axles (Pair)
- All G8/SS axles are designed to work with the factory 32 spline differential and 30 spline wheel hubs. Australian platforms need to confirm spline counts before ordering as there are some variables.
- Our average G8/SS customer is around 700hp, with some as high as 1000hp. Important to note that any axle can fail at a lower power level due to wheel hop or misuse. The listed numbers should not be an expectation, but an idea for capability.
- Many customers will see a decrease in reliability with the factory SS differential around 800hp (ZL1 differential offering a little more strength). Some have certainly failed at considerably lower power levels, but also worth noting that if you plan to run competitively or at a considerably higher power level that you might consider an upgrade such as our 9” conversion.
[/col]
[col span="1/2" ]
Heat and friction will gradually break down CV grease until it no longer functions as a lubricant. The Outlaw axles also get a top-of-the-line grease, which has a higher heat flash point and superior lubrication qualities in comparison to what is used in the Renegade axles.
[/col]
[/row]
The CV to stub joint is a critical mating point that relies solely on clamping force to hold the stub in place relative to the CV and axle bar. The Renegade axles get a standard 12.9 socket headed cap screw, where the Outlaw axles get a 12-point ARP fastener to help with overall strength and clamping force.
[row ]
[col span="1/2" ]
The GForce Outlaw Axles were introduced as the next iteration in the GForce line-up, boasting unparalleled performance and durability even in the most extreme driving environments. The Outlaw axles use a unique and uniform surface treatment that helps cut down on rolling resistance and wear. This is helpful in just about every application as CV’s will almost always be functioning at some angle. Additionally, the CV ball bearings are constantly traveling back and forth in the CV housing every rotation of the axle. That equates to a lot of work and, in turn a lot of heat production. Ultimately, the Outlaw CV is more efficient, which means more energy from the engine to the tires with less effort. As a byproduct, we see less heat because of the decreased rolling resistance and this translates to longer CV life.
[/col]
[col span="1/2" ]
[/col]
[/row]
