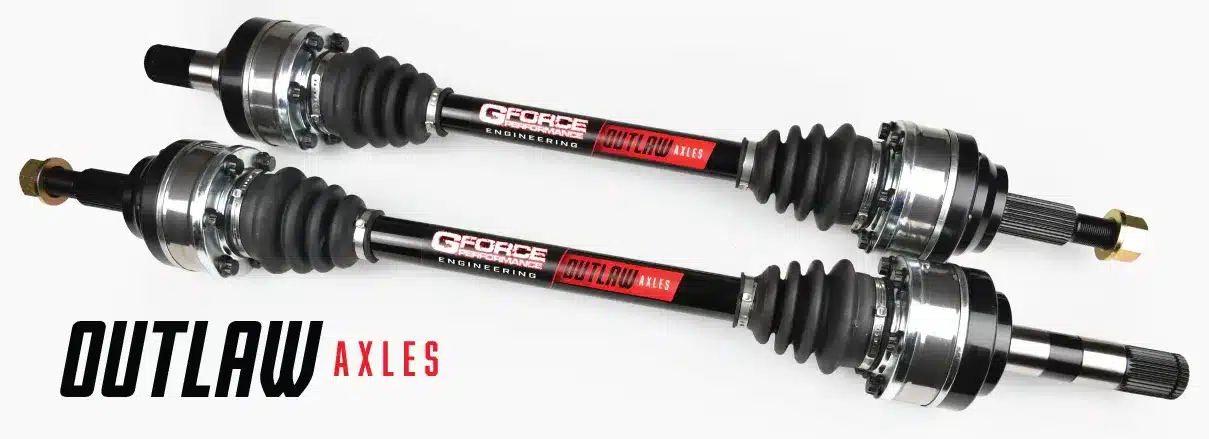

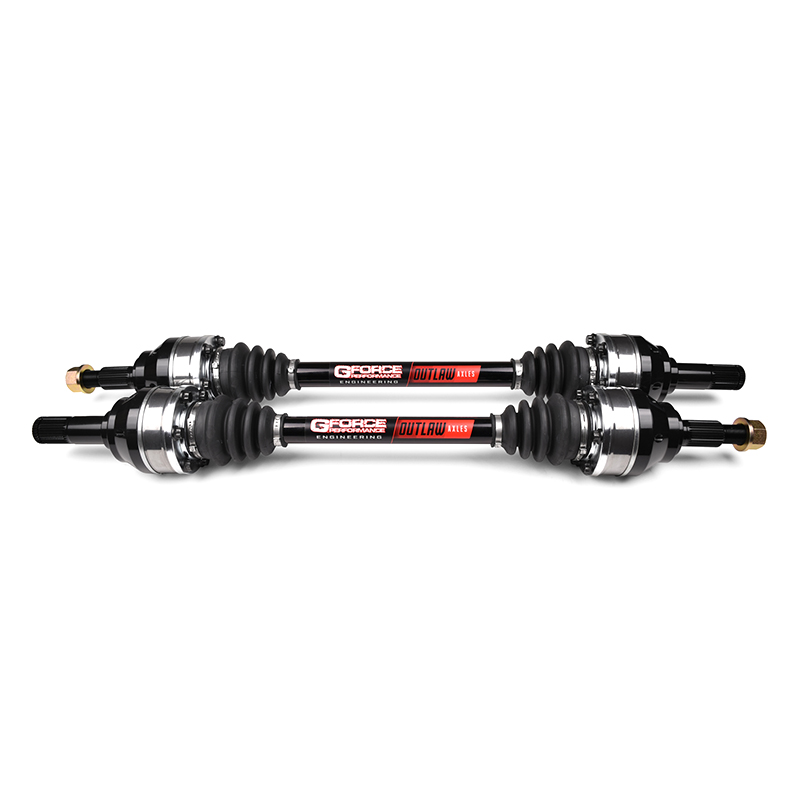

GForce Outlaw Axles (Pair)

GForce Axles have become synonymous with record breaking consistent performance and have proven to be the go-to solution for anyone looking to get the most from their factory driveline setup. Not all vehicles have an optimal design or the most ideal spline counts to boost strength, but you can be confident that GForce axles are engineered to be the absolute strongest possible to work within the space provided by the OEM manufacturer. GForce offers two different axles for most applications.

Specific notes for Pontiac G8 & Chevy SS:

• All G8/SS axles are designed to work with the factory 32 spline differential and 30 spline wheel hubs. Australian platforms need to confirm spline counts before ordering as there are some variables.
• Our average G8/SS customer is around 700hp, with some as high as 1000hp. Important to note that any axle can fail at a lower power level due to wheel hop or misuse. The listed numbers should not be an expectation, but an idea for capability.
• Many customers will see a decrease in reliability with the factory SS differential around 800hp (ZL1 differential offering a little more strength). Some have certainly failed at considerably lower power levels, but also worth noting that if you plan to run competitively or at a considerably higher power level that you might consider an upgrade such as our 9” conversion.

Fitment
GForce axle shafts were manufactured based on OEM suspension. Aftermarket shocks, control arms, etc. may present clearance issues. If CV boots have clearance issues, low profile boots can be purchased at an upgraded cost. The low profile boots reduce the amount of available axle angle in comparison to the standard boots, so they are not ideal for lowered or high axle angle vehicles. This includes 2010-15 Camaro and all years of Mopar platforms. If you have questions or would like to add low profile boots to your axles, please contact us for more information.

Damage Prevention
NO DRIVELINE COMPONENT IS BOMBPROOF! GForce does not put a power rating on any driveline components as there are entirely too many variables that can affect a driveline component outside of power. We take great pride in trying to build the strongest driveline components to fit within certain applications, but it is important to know that You, the end customer, are responsible for seeing to proper installation and You, as the driver, are responsible for the lifespan of your axles or other driveline components.

Service
All driveline components will fatigue or wear over time depending on how the vehicle is driven and what level of performance is demanded from them. CV joints are a wear item and will see wear over time, but with our current design, axles can be sent in for service. So boots, fasteners, and CV assemblies can be serviced without scrapping the complete axle assembly. It is up to each customer to establish their own maintenance intervals based upon the manner in which their car is driven. Individual inner or outer splined stubs and axle bars can be replaced as well if they twist or are damaged due to wheel hop or simply from power levels exceeding capability of the material. Customers can reach out to GForce directly for current repair costs or component replacement as well as return authorizations for service – sa***@********20.com
