KPM 2200HP IN-TANK FUEL AND PWM SYSTEM

**COMING SOON**

KPM Fuel Systems are proud to release the highest level of direct fit fuel systems for the Chevrolet SS.

With the modern Chevrolet being tuned to amazing power levels comes the need for a high-performance fuel system.

KPM has met this need with a direct replacement high performance fuel system that will perfectly support power levels from standard all the way to 2200 hp.

No other Chevrolet fuel system supports as much power, with the efficiency, functionality, and fuel delivery of the KPM 2200 hp fuel system.

*Learn more in the “Description” tab below.

$5,278.00

Currently Out Of Stock

This product is currently sold out.

Don't worry! Enter your email and we'll notify you when it's available again.

SKU: KPMCOM2200PWM-P Categories: , , , , Tags: , , Brand:

[yith_wcwl_add_to_wishlist]

The KPM 2200 hp Fuel Module System is engineered, utilizing 3x high performance fuel pumps, all housed in two separate OEM style high flow fuel modules and distribution manifolds. The primary module is the KPM1500 (2 pumps) and the second module is the KPM700 (1 pump). Both KPM fuel modules are mounted and immersed in the vehicle’s fuel tank as per OEM design and for ease of fitment.

The development and testing of the KPM modules were focused on supplying guaranteed delivery of cool dense fuel to support 2200 hp at the engine on pump fuel. Our objective was a reliable solid fuel delivery, to a 2200 hp engine in the extremes of racing as well as everyday road driving.

To achieve these objectives, our KPM Fuel System engineer designed and incorporated a six Venturi pump and refill valve system designed to scavenge fuel from both sides of the Chevrolet fuel tank and permanently keep both the fuel canisters full. We also incorporated a PWM system to control the fuel pump operation and deliver fuel precisely as needed.

This means that you have the best of both worlds. You can run the KPM fuel modules safely at any fuel levels under normal road conditions, without the risk of surge or fuel starvation.

When you go racing at the circuit or drags and are under full load applications, fuel levels are simply required to be run at recommended levels* to avoid risk of surge or fuel starvation.

The fuel pumps are both 100% gasoline, ethanol, and methanol compatible and able to deliver massive amounts of cool dense fuel at standard vehicle voltages.

This equates to optimum tuning and power levels up to 2200 hp (flywheel rated on 94 octane fuel).

*Minimum 40 litres of fuel for full load applications.

KPM Fuel Systems have designed a PWM fuel module controller that can electronically run the primary KPM1500 fuel module and the secondary KPM700 fuel module in any combination.

Its main purpose is to control the supply of fuel flow in accordance with the engine power and fuel demand. It does this by electronically controlling the amount of current supplied to the fuel pumps.

The KPM PWM Fuel Module Controller is supplied pre-programmed to run one or both modules together depending on power and fuel demand.

  • Primary Module (KPM1500) runs continuously
  • Secondary Module (KPM700) is turned on only with increased power/fuel demand

Both modules, primary and secondary, will always only run at the desired current determined by the power/fuel demand. This ensures cooler fuel and accurate supply.

Less fuel pump current = less heat = cooler fuel = more power

Supplying fuel to support 2200 hp and beyond requires three high-flow fuel pumps, housed in two in-tank fuel modules. The drawback to this scenario is that two or more fuel pumps can generate quite a lot of fuel pump current meaning increased heat.

This transfer of heat needs to go somewhere and therefore, heats the fuel in the tank. This is generally not a concern however, if the vehicle is idling or being driven for long periods with a low level of fuel in the tank, the fuel may start to reach a point of losing its full energy potential or start vaporizing in the pumps or fuel lines. This can cause long cranking times and hard re-starts. In the worst cases, the fuel pumps will start to cavitate, lose pressure and not supply fuel as intended.

The KPM PWM controller is pre-programmed to monitor your vehicle fuel pressure across all engine loads which, in turn, allows the controller to calculate the required level of electrical current to your fuel pumps. This, in turn, delivers the correct amount of fuel to your engine as required across all conditions.

Cooler fuel increases your performance.

Vehicles with a Factory Fuel System Control Module (FSCM)
Chevrolet SS 2013-2017

The KPM PWM Fuel Module Controller comes complete with wiring to be connected to the vehicle’s factory FSCM to read the OE signals. The KPM PWM Fuel Module Controller uses the OE signals from the FSCM to calculate the correct current required to run the pumps accordingly. The KPM PWM can also be programmed utilizing the OE fuel system programming tables.

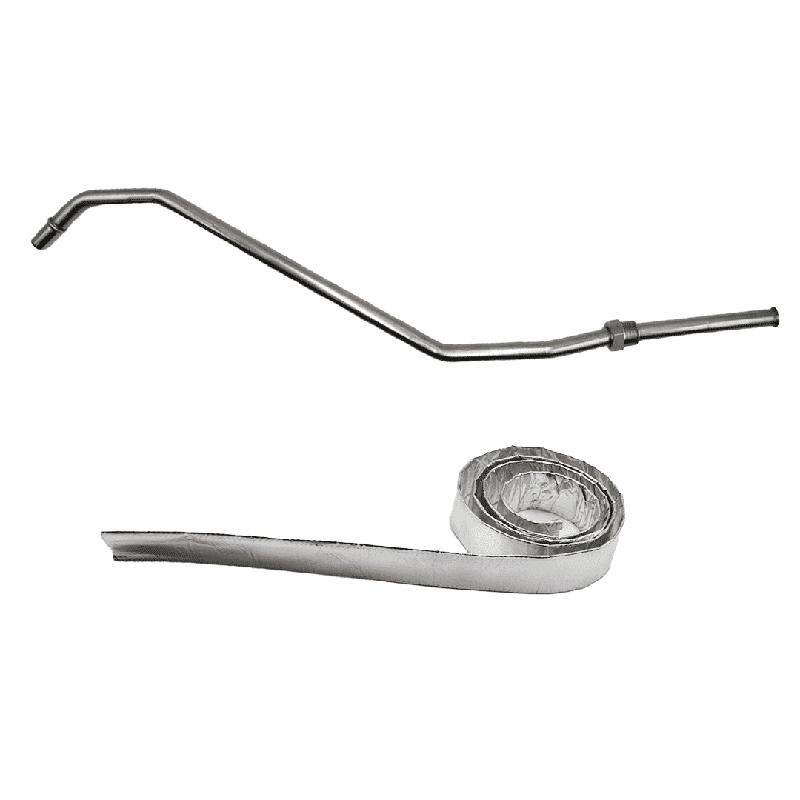

To support up to 2200 horsepower at the engine, the fuel supply requirement is massive and your standard fuel lines are just not going to handle it! KPM have engineered a direct replacement, direct fit stainless steel fuel line upgrade kit. No messing around with time consuming, cumbersome fittings, cutting etc. Simply remove your standard metal fuel lines and fit our pre-shaped direct fit stainless steel ½” lines. We supply every section required from your fuel module all the way to the engine. All the sections have been manufactured with EFI fittings and connectors to make for a sleek ‘click’ together style of OE fitment.

Included in the KPM Fuel Line Upgrade Kit, is our KPM 2200 hp Fuel Filter. The fuel filter fits directly to the upgraded fuel lines, again making for a direct easy fit. The KPM 2200 hp Fuel Filter housing is made of anodized aluminium and houses a 40-micron stainless steel, cleanable lifetime fuel filter element. This makes the fuel filter fully serviceable without the need to ever replace it.

Stainless steel fuel lines, anodized aluminium filter housing and stainless-steel fuel filter elements all guarantee a fuel system that is 100% compatible to all fuels including methanols, ethanols, race fuels and gasoline.

The KPM Fuel Line and Fuel Filter Upgrade Kit is essential for maximum fuel supply without restriction of clean fresh fuel to run your engine at maximum performance.

The KPM 2200 hp Fuel and PWM System is a complete solution fuel system with the fuel modules fitted in the OE location, the PWM easily mounted as per the instructions provided and the Fuel Line and Fuel Filter Upgrade a direct replacement to the factory lines.

The only extra requirement is to route the high amperage wiring and connector kit, that comes supplied with easy fit OEM style plug and play connectors.

The KPM 2200 hp fuel system is now ready for your tuning professional to calibrate your fuel system and tune your vehicle as normal with any well-known tuning software.

  • Complete Primary 1500 hp fuel module—direct replacement fit
  • Complete Secondary 700 hp fuel module—direct fit
  • Electronically controlled pre-programmed PWM System
  • Direct replacement Fuel Line and Fuel Filter Upgrade Kit
  • Integrated 6 Venturi Pumps with refill valve system
  • Internal design fuel pressure regulator
  • 3x high performance Racing fuel pumps
  • 2x High flow canister, distribution manifold and fittings
  • Easy fit high amperage wiring/connector kit
  • Supports standard power and up to 2200 hp
  • NO surge across all conditions
  • Eliminates the need for hanger assemblies
  • Eliminates the need for voltage boosters
  • Eliminates the need for return style systems
  • Eliminates the need for surge tank systems
  • Cool, dense fuel creating extra power and economy
  • Optimum pump life
  • 100% compatible on all fuels including methanol, E85 ethanol, race fuels and gasoline
  • Easy hassle-free fitment
  • Fitting and calibration instruction included

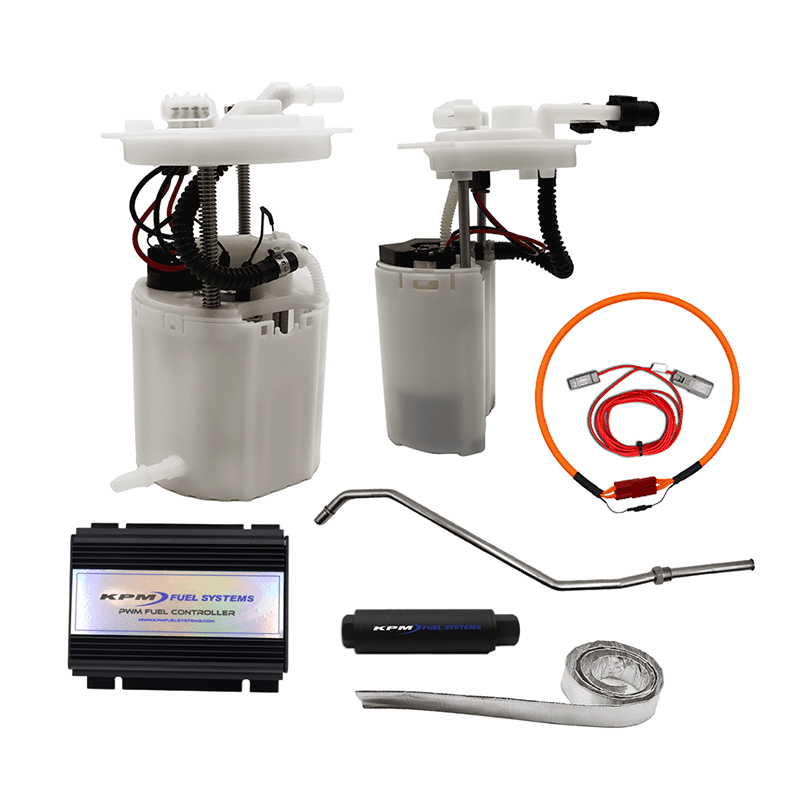

  • KPM 1500 hp in-tank fuel module (primary)
  • KPM 700 hp in-tank fuel module (secondary)
  • KPM PWM Fuel Module Controller
  • KPM Fuel Line and KPM 2200 hp Fuel Filter Upgrade
  • Easy fit high amperage wiring and connector kit
  • Fitting and calibration instruction included
Stuck with your installation?
Find all of our fitting instructions within your kit and available separately by request.
