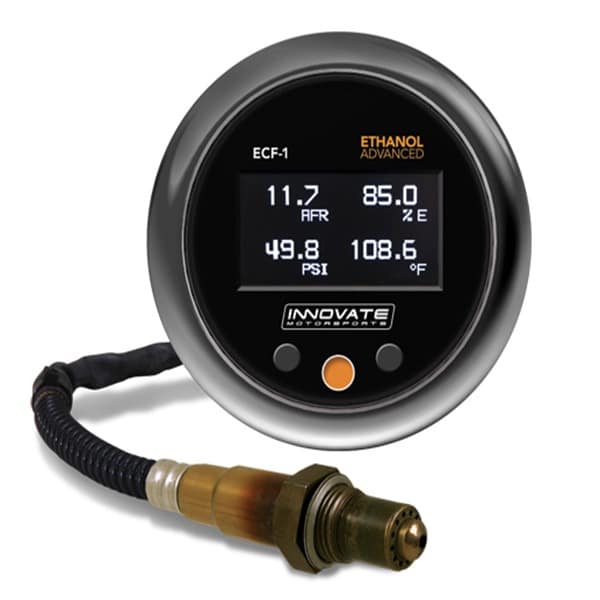

Innovate Motorsports ECF-1: (FUEL) Ethanol Content & Air/Fuel Ratio Gauge (4 gauges in 1)

$498.99

  • Four-in-one, ethanol content percentage, fuel temperature, fuel pressure, and wideband air/fuel ratio gauge
  • OLED user configurable display (one, two, or four channel viewing modes)
    • Ethanol %, Fuel Pressure, Fuel Temperature, Air/Fuel ratio
    • °F or °C, AFR or Lambda, PSI, kPa, or BAR
    • On screen error reporting for ethanol content sensor and wideband O2
  • Warning indicator LED for low fuel pressure (user programmable)
  • 0-145 PSI (10 Bar) fuel pressure sensor
  • 4-Configurable analog outputs for use with standalone and other programmable ECU’s as well as external data loggers
    • Ethanol Content: 0v = 0%, 5v = 100%
    • Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)
    • Fuel Press: 0v = 0 PSI, 5v = 145.04 PSI (0-10 BAR)
    • Wideband Air/Fuel Ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 Lambda)
  • 52mm (2 1/6”) diameter gauge body with interchangeable faceplates and bezels: Black and silver bezel, black and white faceplates included
  • No PC required for configuration
  • Bosch LSU 4.9 wideband O2 sensor
  • Patented DirectDigital™ wideband sensor control, the only 100% digital wideband air/fuel ratio technology!
  • Wideband O² Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)
  • Ability to calibrate O² sensor for maximum accuracy
  • Innovate MTS serial in/out (for use with other Innovate & 3rd party MTS enabled devices to add additional logging channels)
