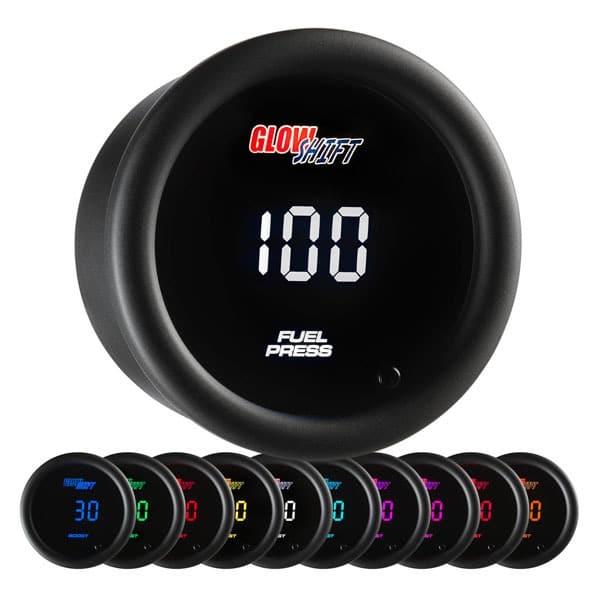

Glowshift 10 Color Digital 100 PSI Fuel Pressure Gauge
- 2-1/16” (52mm) Black Gauge Face with a Low Profile Tinted Lens
- Fuel Pressure Readings from 0 to 100 PSI
- 10 Color LED Options Include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber & Orange
- 10 Color LED Cycle & Fade Mode
- 1/8-27 NPT Fuel Pressure Sensor
- 9’ Sensor Harness
- 2’ Power Harness
- Self-Calibration at Startup
- Dimmer Wire Allows the Gauge to Dim 50%
- Gauge Visor
- Mounting Hardware
- Installation Instructions
- Free Lifetime Technical Support
- One Year Limited Warranty
GlowShift’s 10 Color Digital Series 100 PSI Fuel Pressure Gauge is electronically driven and reads fuel pressure from 0 to 100 PSI. A fuel pressure gauge is important for any vehicle as it allows you to closely monitor the changing pressures ensuring that it is running at optimal levels. If you are running fuel pressure levels that are too low and go unnoticed, it could result in a loss of horsepower or damage to the fuel pump and injectors. This fuel pressure gauge includes a 1/8-27 NPT pressure sensor, 9’ sensor harness, 2’ power harness, gauge visor and mounting hardware for a complete installation.
Each 2-1/16” (52mm) 10 Color Digital Gauge features a flat gauge face with a digital numerical readout for quick glance gauge readings. The digital gauge offers 10 different color options that include blue, green, red, yellow, white, teal, purple, pink, amber and orange. After the color orange, there are 2 additional modes that include the 10 color cycle and 10 color fade mode that utilize all of the featured colors. At startup, a self-calibration mode ensures that the gauge is performing optimally. Each gauge features an ultra-thin design with a depth of 1.32” and an LED display that measures at 1.05” x 0.43”. For an easier viewing experience while driving at night, connect the orange wire to the headlight switch source to allow the gauge to dim 50% when the headlights are on. GlowShift stands behind each product by including installation instructions, a one year limited warranty and free lifetime technical support.
Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.
