Radium Engineering Fuel Pump Hanger

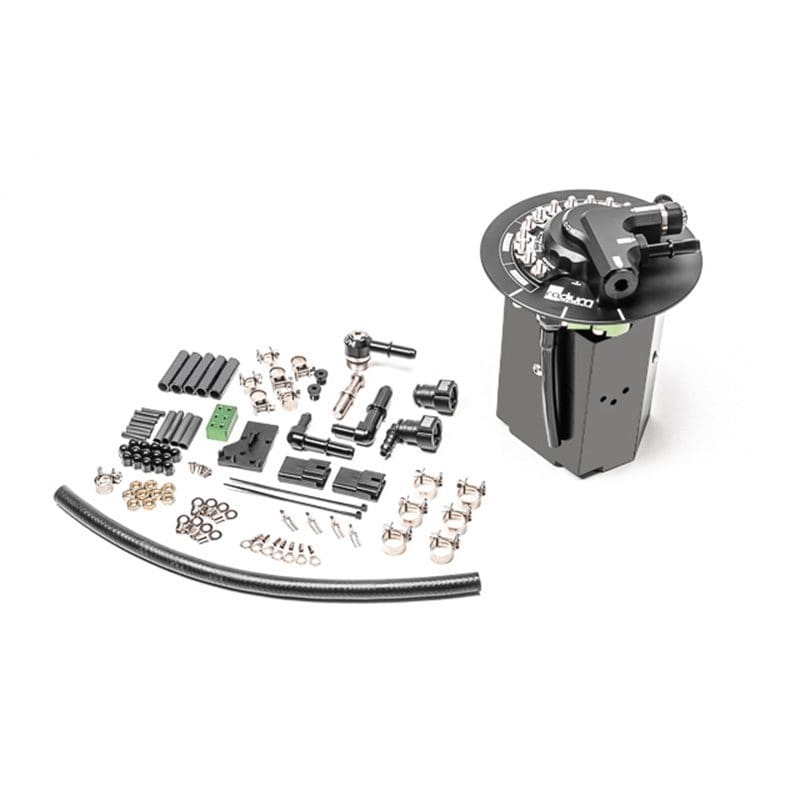

This fuel hanger completely replaces the factory in-tank fuel pump module and allows 1, 2, or 3 aftermarket pumps to be used.

Part number 20-1320 (shown above) was designed specifically for AEM 50-1220 pumps as well as the brushless Bosch pumps found in the Deatschwerks DW440 kits.

All OEM sensors can be reused.

FUEL PUMP COMPATIBILITY

AEM 50-1220
Deatschwerks DW440 Brushless
*Bosch 0 580 454 100
*Cadillac CTS-V (stock) pumps
Holden Commodore VE (stock) pump
Chevrolet Omega (stock) pump
Pontiac G8 (stock) pump
*No internal check valve. Best to run 2 full time with the OEM PCM.

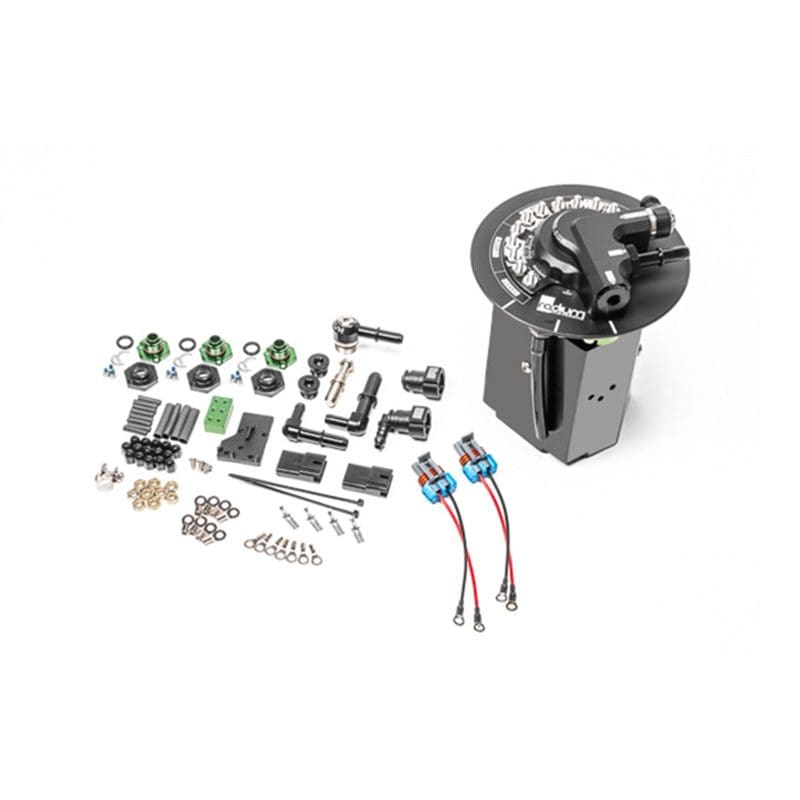

NOTE: There will be enough components included to use 1, 2, or 3 fuel pumps. Depending on the setup, some parts will simply not be used.

This fuel hanger completely replaces the factory in-tank fuel pump module and allows 1, 2, or 3 aftermarket pumps to be used.

Part number 20-1322 (shown above) was designed specifically for the following Walbro 39/50 DCSS pumps: F90000267, F90000274, and F90000285.

All OEM sensors can be reused.

FUEL PUMP COMPATIBILITY

Ti Automotive Walbro F90000267
Ti Automotive Walbro F90000274
Ti Automotive Walbro F90000285

NOTE: There will be enough components included to use 1, 2, or 3 fuel pumps. Depending on the setup, some parts will simply not be used.

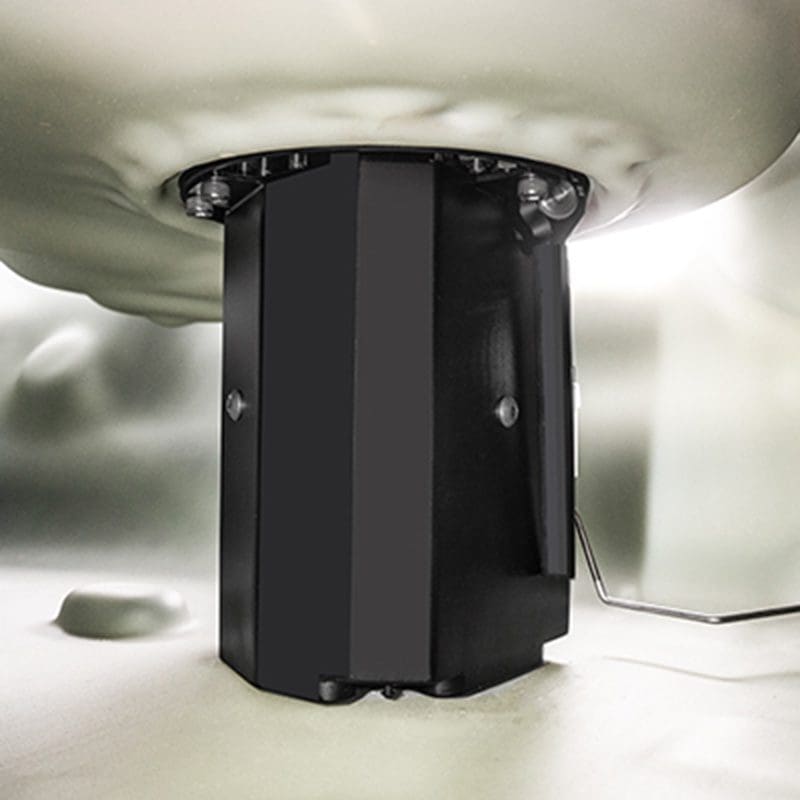

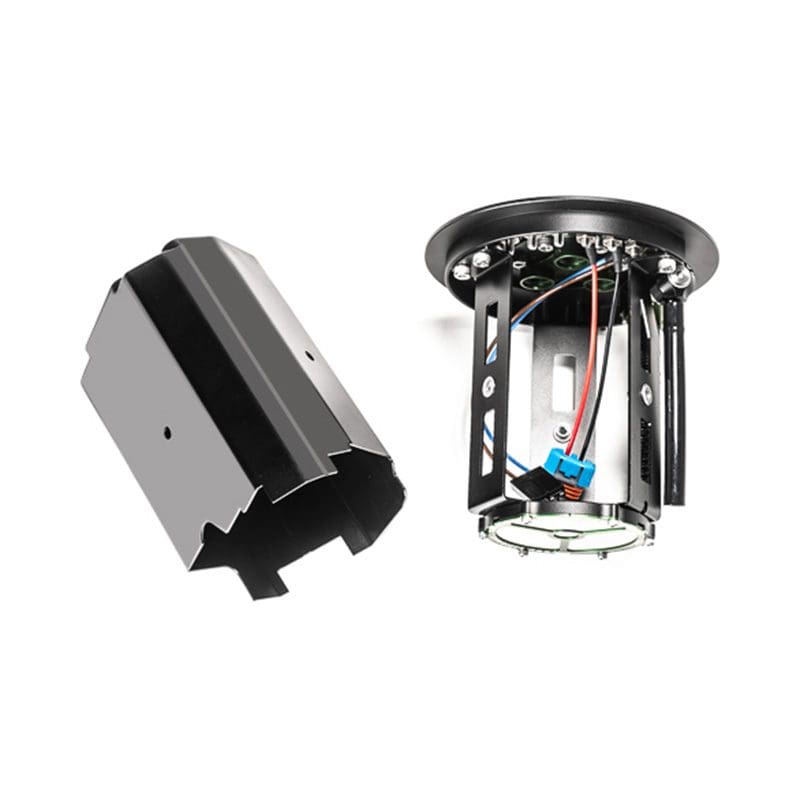

1. The 1-piece anodized aluminum collector box keeps fuel trapped around the pump inlet(s).

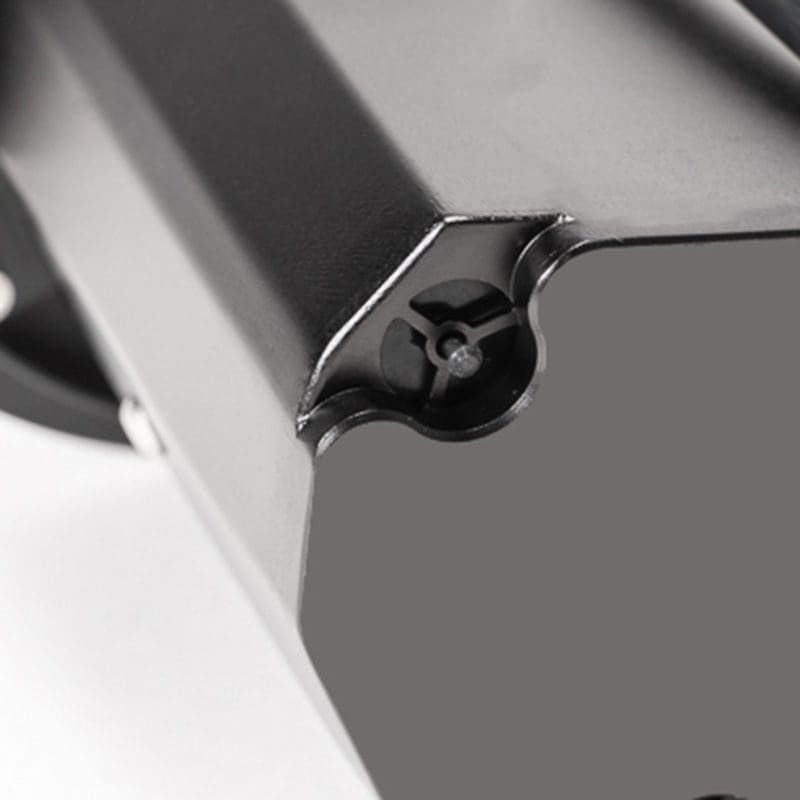

2. There are three 1-way fill valves incorporated in the bottom of the collector box that allows fuel in, but not out. Each 1-way fill valve flows 355 LPH.

3. The collector box is constantly replenished with fuel returning from the pressure regulator.
4. The collector box is constantly replenished with fuel coming from the jet pump crossover line.

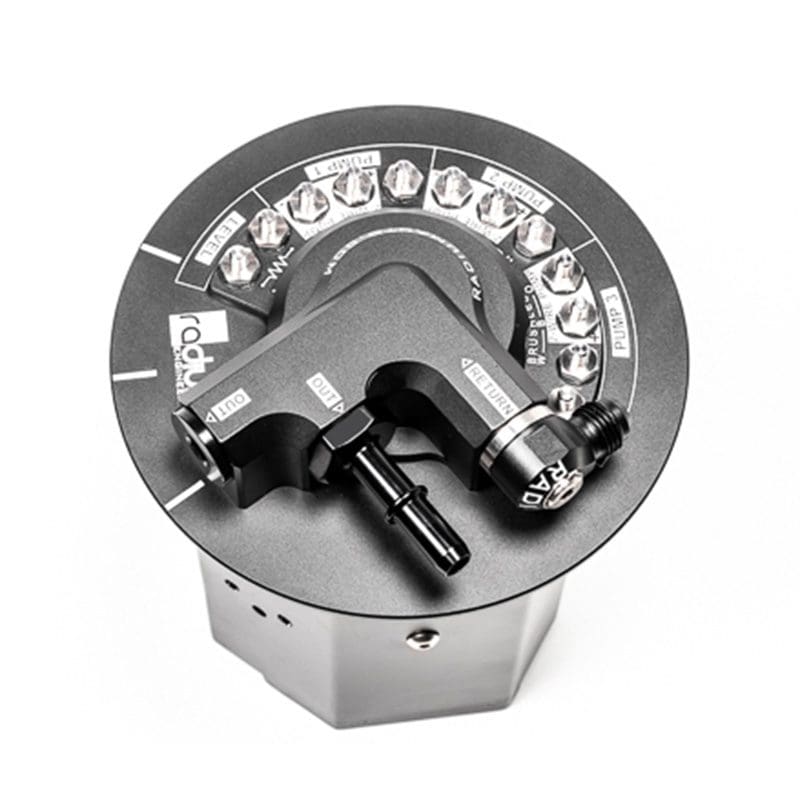

1. There are 2 pump “OUT” ports that are both tapped with 3/4″-16 (8AN ORB) threads.
a. The first “OUT” port can be used to reconnect the factory fuel feed line. Because the OEM fuel feed line has an integrated fuel pressure sensor, this feature is critical for many applications. There are 2 different SAE quick connect fittings provided to adapt to the specific vehicle.
b. The second “OUT” port can be used to route another feed line for increased flow. This port comes preinstalled with an 8AN ORB plug but a spare 8AN ORB to 6AN Male fitting is provided.

2. The “RETURN” port is tapped with 3/4″-16 (8AN ORB) threads. Provided is an 8AN ORB to 6AN Male banjo fitting.

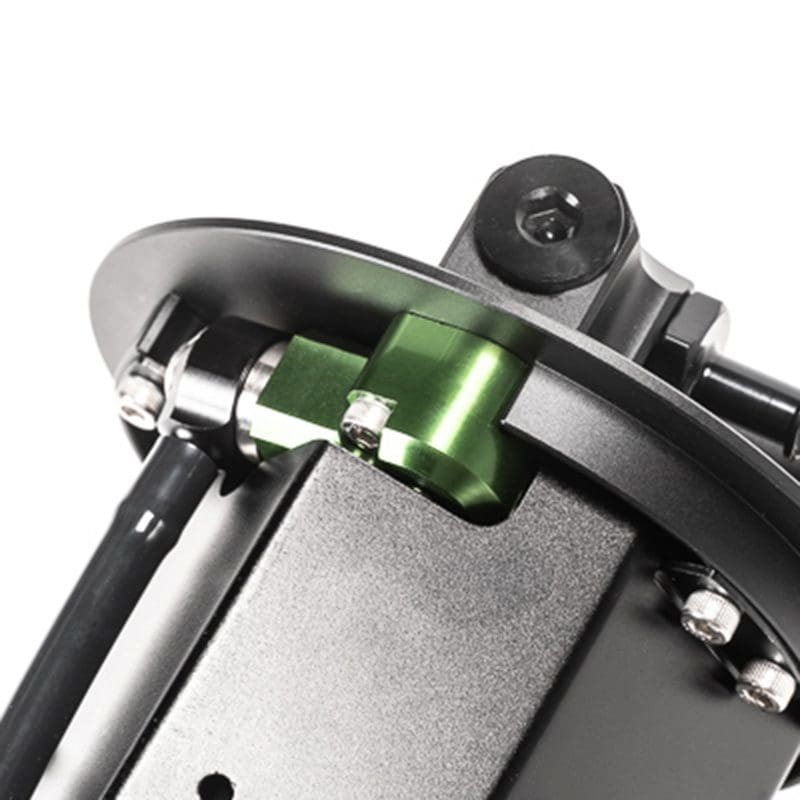

1. The OEM venturi jet pump in the return line creates a restriction that can impact fuel pressure reliablity.
2. The siphon system has been replaced and redesigned to eliminate this return line restriction but still effectively scavenges fuel. This means higher flowing pumps can safely be used without fuel pressure issues.

3. Depending on fuel pressure, the venturi jet pump will consume 15-45 LPH. Take this fuel loss into consideration when sizing the fuel pumps.

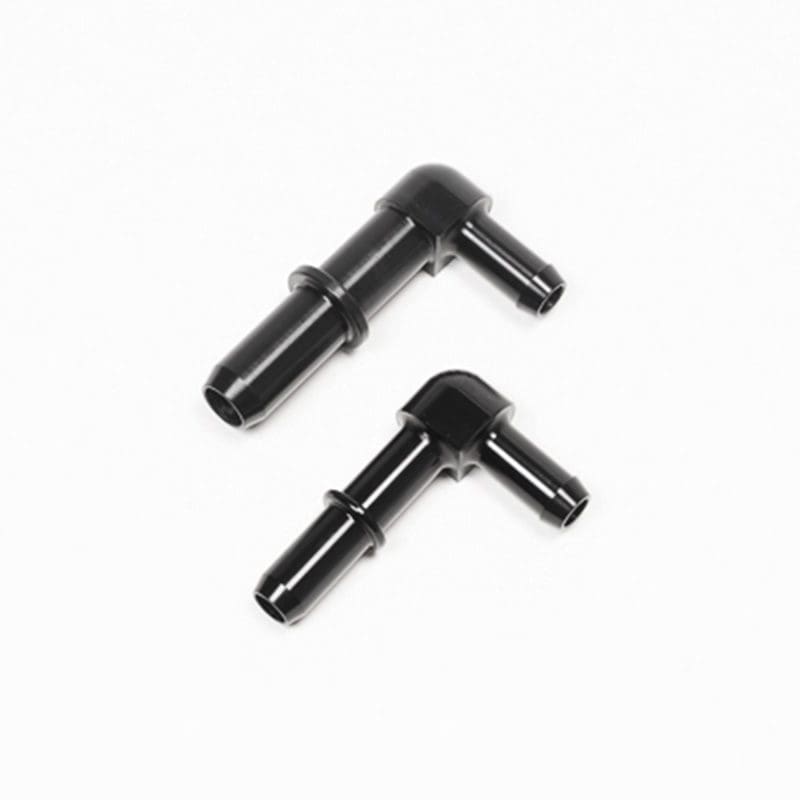

4. To reconnect the internal OEM fuel crossover transfer line, 2 different SAE quick connect fittings are provided to cover all compatible vehicles.

5. The fuel pump hanger plumbing kits (listed below) include fuel filters with a built-in check valve. If not purchasing one of these plumbing kits and it is important for fuel pressure to hold steady after the engine is shut down, install a check valve in your fuel system.

One of the “OUT” ports can be used to reconnect the factory fuel feed line. Because the OEM fuel feed line has an integrated fuel pressure sensor, this feature is critical for many applications.

There are 2 different SAE quick connect fittings provided to adapt to the specific vehicle.

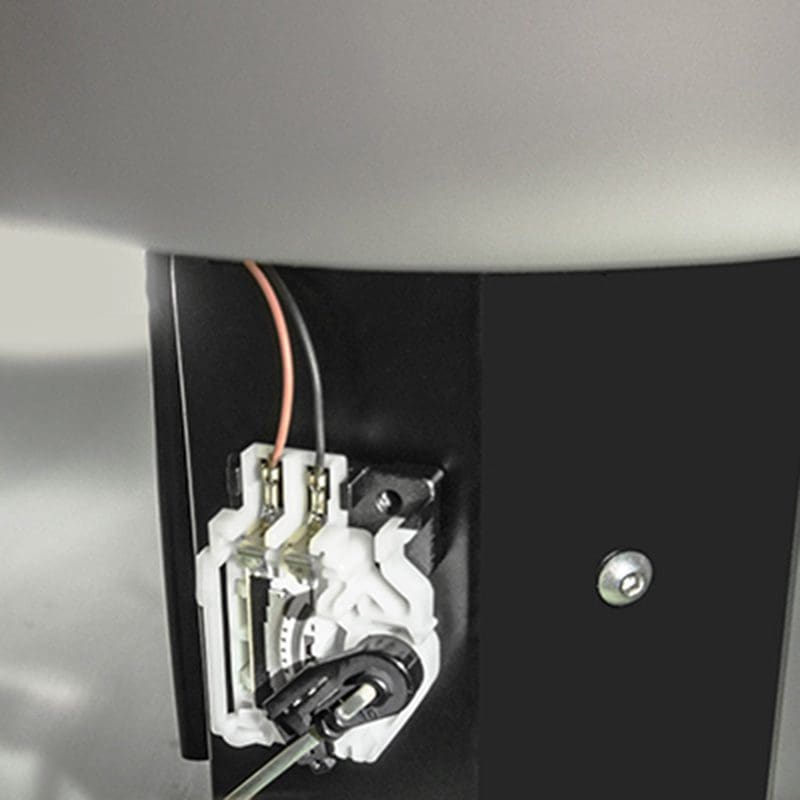

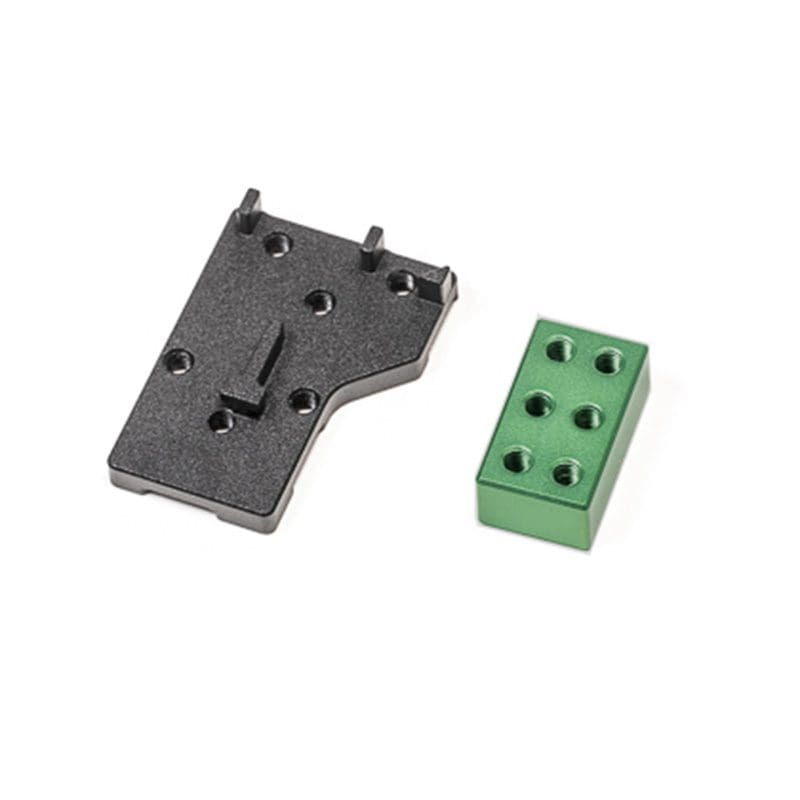

To retain the OEM fuel level sensor, 2 different billet aluminum mounts are provided to cover all compatible vehicles.

There is an OEM fuel pressure sensor integrated to the feed line just downstream of the pump. This fuel hanger was designed to keep this pressure sensor operational. Simply connect the OEM fuel line to 1 of the 2 pump “OUT” ports. Also, SAE quick connect plugs are provided to cap off this OEM fuel line after this sensor, if need be.

1. This system eliminates the OEM fuel pressure regulator inside the stock unit.
2. This system requires the use of an aftermarket fuel pressure regulator.
3. A fuel pressure regulator is included in the plumbing kit.

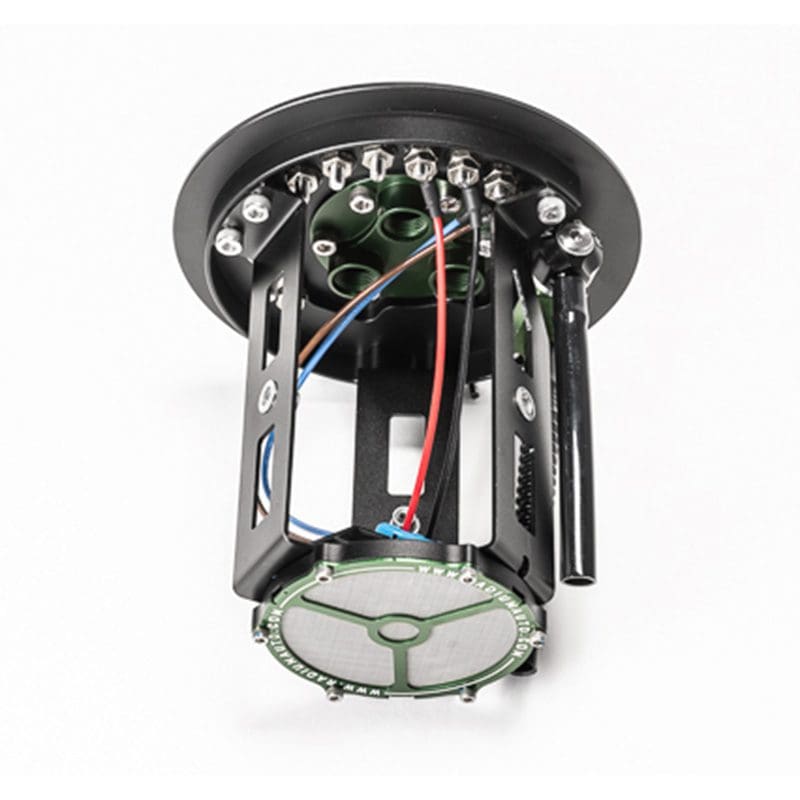

1. This system includes pre-pump filtration for all 3 pumps.

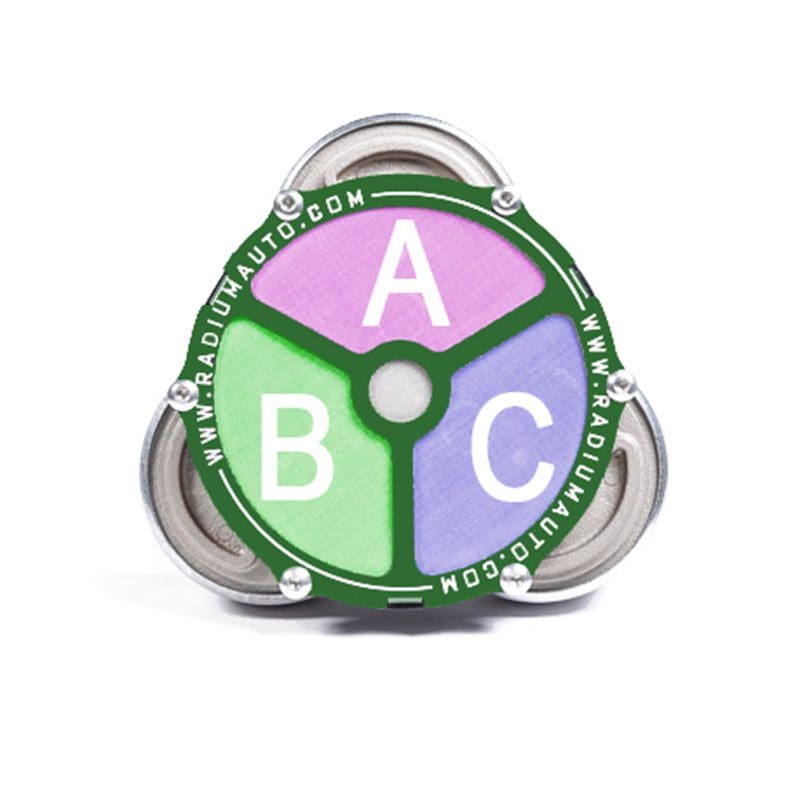

As shown below, fuel cannot pass between the 3 independent filtration chambers (A, B, C). If less than 3 pumps are installed, the empty port does NOT need to blocked off.

2. This system eliminates the OEM “post” pump filter. A low-micron aftermarket fuel filter should be installed downstream to protect the injectors from debris.
3. A post-pump fuel filter is included in the plumbing kit.

1. Single fuel pump installations can re-use the OEM fuel pump controller wiring.
2. It is recommended to upgrade the wiring to ensure the pump(s) are operating at their full potential.
